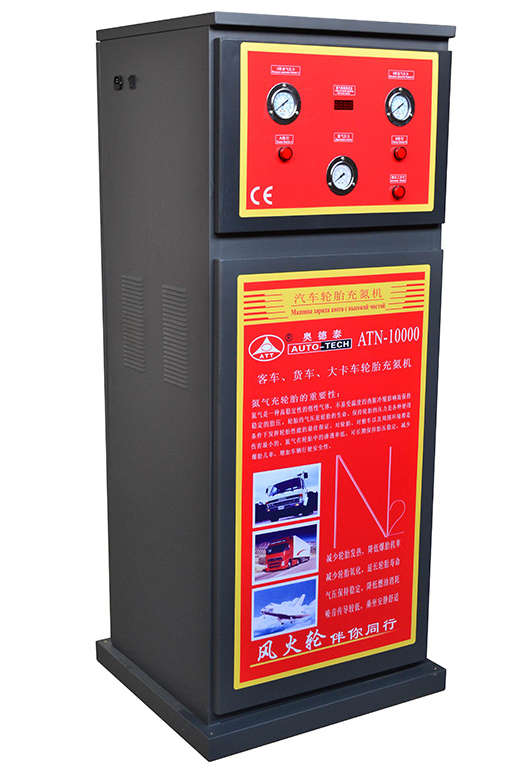

Nitrogen Generator ATN-10000 |
Technical Parameter:
Air pressure: 8-16kg/cm2
Air consumption: 0.9m3/min
N2 production: 10-15m3/h
N2 purity: 95～99.5%
Pressure of N2 production: < 16kg/cm2
Power: AC220V/50-60HZ/1Ph
Feature:
1. PSA Nitrogen equipment features a high nitrogen purity and low dew point.
2. Automatically supplies N2 when tank runs low. Once up to preset pressure,
the equipment will stop producing N2.
3. High quality control valve: Excellent imported special pip air motion valve ensures
stable and reliable running of the equipment.
4. Imported carbon membrane sieve: It features high capacity of absorption, high
resistance to pressure and long life.
5. Good stability: The program is controlled by a microprocessor that ensures N2
purity and flow as well as long-term stability.
6. High reliability: During process of pressure balance and increase, the air velocity
on the absorption tower is near zero. The molecular sieve has almost no wear and tear.
