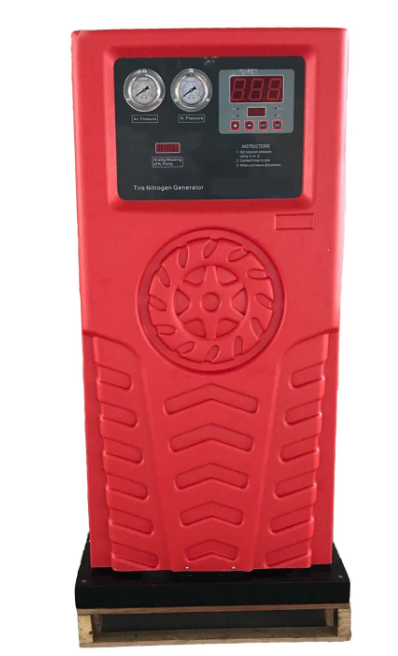

Nitrogen Machine N-2500A |
Technical Parameter:
Item | FW-2500A |
Test range | 0.0～6.0kg/cm2 |
Test accuracy | ±0.1 |
Air pressure | ≤8.0kg/cm2 |
Inflate volume | > 0.5 M3/min |
Air consumption | 480L/min |
Working temperature | -10℃～50℃ |
N2 purity | ≥95% |
N2 production | 50L/min |
Power | 220V/50HZ；110V/60HZ |
Power | 50W |
N.W (kg) | 64.5 |
G.W (kg) | 68 |
Dimension (cm) | 72(L)×52(W)×142(H) |
Feature:
1. PSA Nitrogen equipment features a high nitrogen purity and low dew point.
2. Automatically supplies N2 when tank runs low. Once up to preset pressure, the equipment will stop producing N2.
3. High quality control valve: Excellent imported special pip air motion valve ensures stable and reliable running of the equipment.
4. Imported carbon molecule sieve: It features high capacity of absorption, high resistance to pressure and long life.
5. Good stability: The program is controlled by a microprocessor that ensures N2 purity and flow as well as long-term stability.
6. High reliability: During process of pressure balance and increase, the air velocity on the absorption tower is near zero. The molecular sieve has almost no wear and tear.
