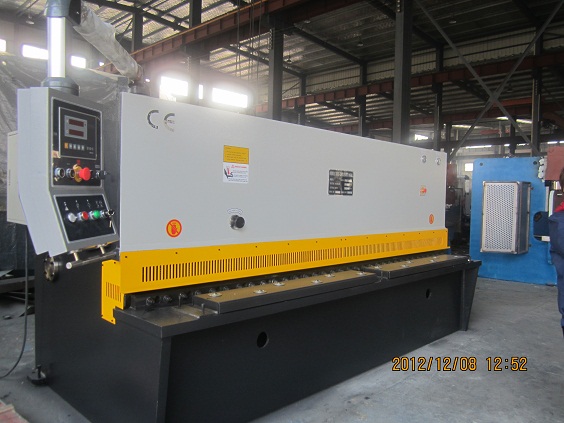

Hydraulic Shearing Machine QC12Y-12X3200

Standards

-Steel plats welded structure,hydraulic transmission and accumulator return stroke

-Characterized by easy operation ,reliable performance and fine appearance

-Indicator based gap adjustment of blades,convenient and swift

-Shadow light alignment

-Top blade could be adjusted for full stroke or shorter ones

-Fence guard for personnel safety

-General digital display position of back gauge and shearing times/counts

Main components

NC Control system  ESTUN E21S

As the simple CNC,it can control the movement of backgauge,achieving efficient and highly precise positioning ,

Also it will count the cutting times.40 programs saving to reduce labour intensity and increase company competition.

v  Backgauge control

v  Bus mode control servo system

v   Stroke lenght limitation

v  Double programmable digital output

v   Program memory of up to 40 programs up to 25 steps per program

v  One side positioning

v  Retract funcation

v   mm/lnch

v  Chinese /English

Enclosed accessories

1、Operation Manual（hydraulic diagram、electro diagram、ground works）

2、Certification.

3、Packing list.

4、Colors: According to your requirements.

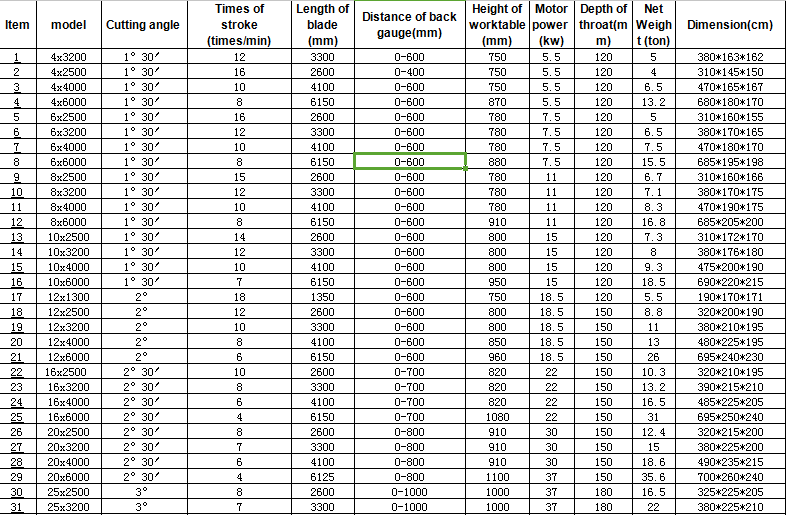

Techanical parameters
