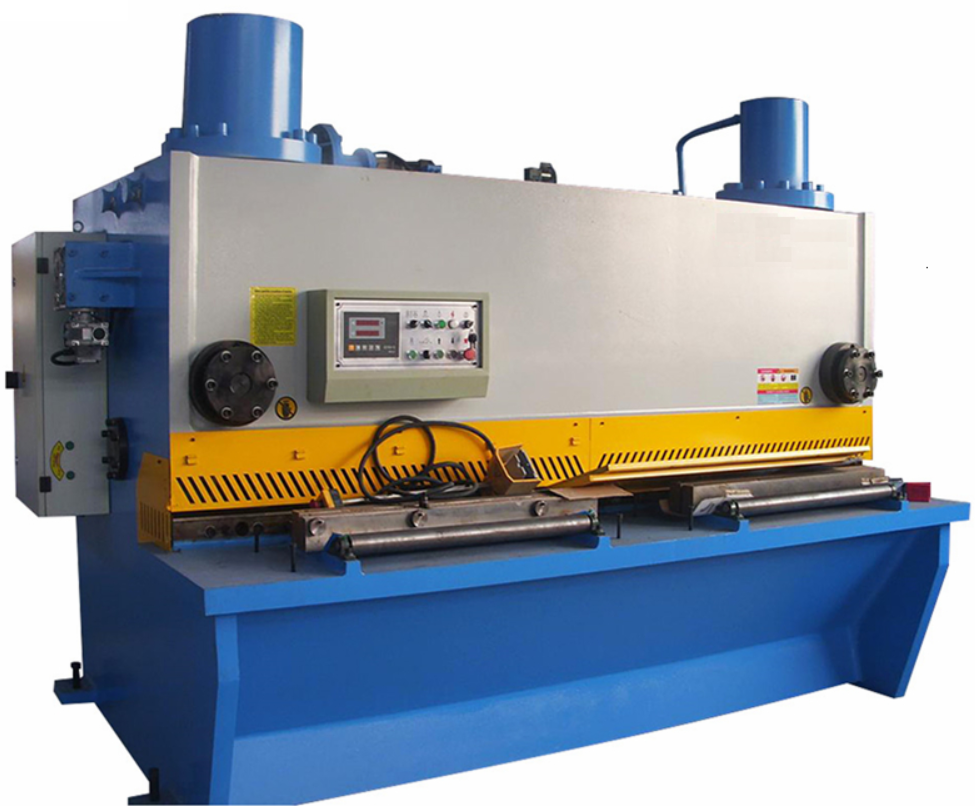

Hydraulic Guillotine Shearing QC11Y QC11K |
Main Features
All steel welded structure,vibrating treatment of ageing for removal of internal stress.With good rigidity and stability.
Using precision slide rail to eliminate the rail speac.The shearing quality is good.
Rectangular blade and the four blades can be used.The life of the blade is long.

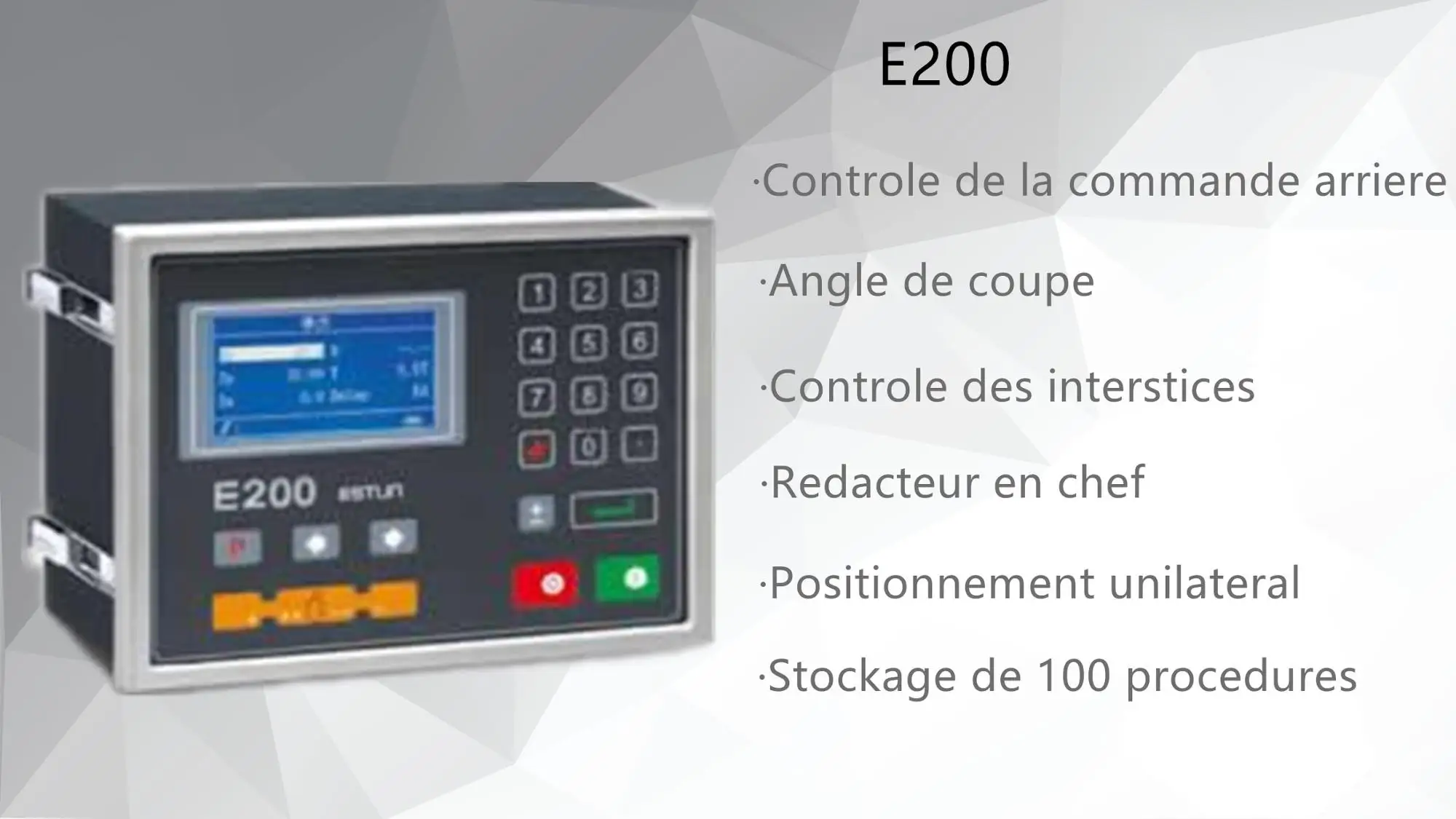

Standard Corfiguration
QC11Y/K Series (CNC) Hydraulic Guillotine Shearing Machine Technical Parameters
| Specification | Shearing Thickness (mm) | Shearing Width (mm) | Strokes(mm-1) | Backgauge Range(mm) | Shearing Angle(°) | Height of working table(mm) | Main power(kw) |
| QC11Y-6x2500 | 6 | 2500 | 16-35 | 20-600 | 30′-1°30 | 800 | 7.5 |
| QC11Y-6x3200 | 6 | 3200 | 14-35 | 20-600 | 30′-1°30 | 800 | 7.5 |
| QC11Y-6x4000 | 6 | 4000 | 10-30 | 20-600 | 30′-1°30 | 30800 | 7.5 |
| QC11Y-6x5000 | 6 | 5000 | 10-30 | 20-800 | 30′-1°30 | 850 | 11 |
| QC11Y-6x6000 | 6 | 6000 | 8-25 | 20-800 | 30′-1°30 | 1000 | 11 |
| QC11Y-8x2500 | 8 | 2500 | 10-30 | 20-600 | 30′-2 | 800 | 11 |
| QC11Y-8x3200 | 8 | 3200 | 12-30 | 20-600 | 30′-2 | 850 | 11 |
| QC11Y-8x4000 | 8 | 4000 | 10-25 | 20-600 | 30′-2 | 900 | 11 |
| QC11Y-8x5000 | 8 | 5000 | 10-25 | 20-800 | 30′-2 | 1000 | 15 |
| QC11Y-8x6000 | 8 | 6000 | 8-20 | 20-800 | 30′-2 | 1050 | 15 |
| QC11Y-12x2500 | 12 | 2300 | 12-25 | 20-800 | 30′-2 | 840 | 18.5 |
| QC11Y-12x3200 | 12 | 3200 | 12-25 | 20-800 | 30′-2 | 900 | 18.5 |
| QC11Y-12x4000 | 12 | 4000 | 8-20 | 20-800 | 30′-2 | 940 | 18.5 |
| QC11Y-12x5000 | 12 | 5000 | 8-20 | 20-1000 | 30′-2 | 1000 | 22 |
| QC11Y-12x6000 | 12 | 6000 | 6-20 | 20-1000 | 30′-2 | 1060 | 30 |
| QC11Y-16x2500 | 16 | 2500 | 12-20 | 20-800 | 30′-2°30 | 840 | 22 |
| QC11Y-16x3200 | 16 | 3200 | 12-20 | 20-800 | 30′-1°30 | 900 | 22 |
| QC11Y-16x4000 | 16 | 4000 | 8-15 | 20-800 | 30′-1°30 | 940 | 22 |
| QC11Y-16x5000 | 16 | 5000 | 8-15 | 20-1000 | 30′-1°30 | 1000 | 30 |
| QC11Y-16x6000 | 16 | 6000 | 6-15 | 20-1000 | 30′-1°30 | 1100 | 37 |
| QC11Y-20x2500 | 20 | 2500 | 10-20 | 20-800 | 30′-3 | 900 | 30 |
| QC11Y-20x3200 | 20 | 3200 | 10-20 | 20-800 | 30′-3 | 950 | 30 |
| QC11Y-20x4000 | 20 | 4000 | 8-15 | 20-800 | 30′-3 | 1100 | 30 |
| QC11Y-20x5000 | 20 | 5000 | 8-15 | 20-1000 | 30′-3 | 1100 | 37 |
| QC11Y-20x6000 | 20 | 6000 | 6-15 | 20-1000 | 30′-3 | 1200 | 37 |
| QC11Y-25x2500 | 25 | 2500 | 8-15 | 20-800 | 30′-3°20 | 900 | 37 |
| QC11Y-25x3200 | 25 | 3200 | 8-15 | 20-800 | 30′-1°30 | 950 | 37 |
| QC11Y-25x4000 | 25 | 4000 | 6-12 | 20-1000 | 30′-1°30 | 1100 | 37 |
| QC11Y-32x2500 | 32 | 2500 | 6-12 | 20-1000 | 30′-4 | 1000 | 55 |
| QC11Y-32x3200 | 32 | 3200 | 8-12 | 20-1000 | 30′-4 | 1100 | 55 |
Description and specifications given in this catalogue are subject to modification without notic
