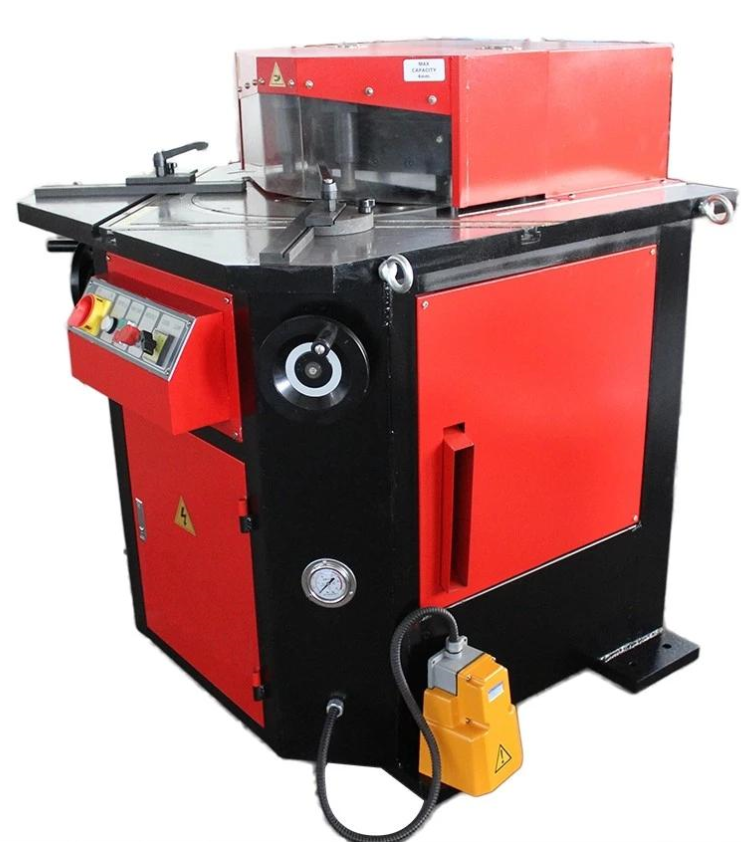

Adjustable Angle Hydraulic Corner Notching

Product Description


Product Application

The Q28 series hydraulic notcher can cut up to 6 mm

The biggest notcher size is 250x250mm

The notching angle unfixes from 30o to 130° with high notching speed

The hydraulic notcher has compact structure,small volume and convenient operation

Product Parameter

Model

Q28Y-4*200

Q28Y-6*200

Shear Capacity

Stainless steel:2mm

Mild steel :4mm

Stainless steel:3mm
Mild steel :6mm

Notching Max size

200x200mm

200x200mm

Notching Angle

30o to 130o

30o to 130o

Stroke Times

30t/min

30t/min

Power

4kw

5kw

Oil Volume

30L

30L

Max Pressure

16Mpa

16Mpa

Voltage

380v 50hz

380v50hz

Blade Materials

9CrSi

9CrSi

Electric Component

Siemens

Siemens

Seal in the cylinders

NOK

NOK

Net Weight

1450KG

1580KG

Dimension

1500*900*1400MM

1500*1000*1400MM

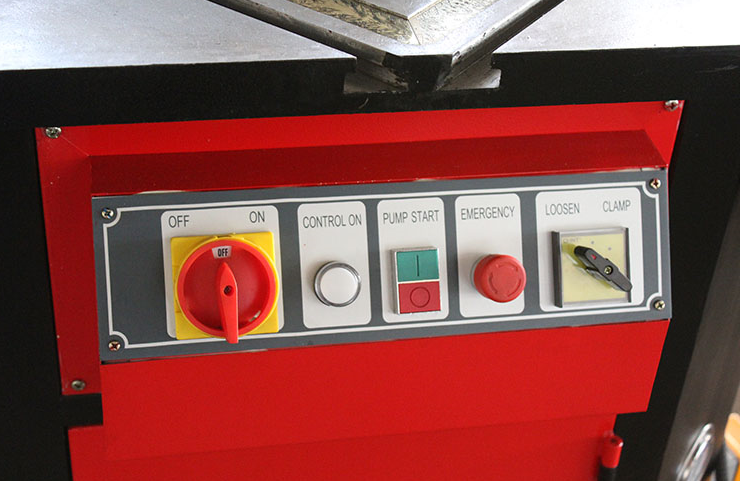

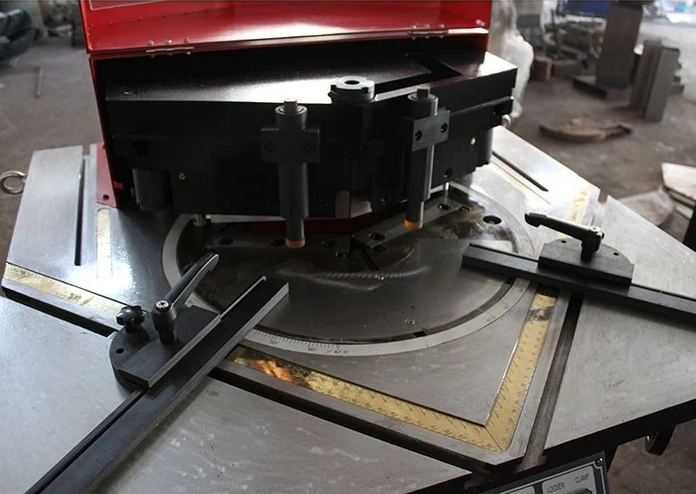

Details:

 image.png image.png
