Automatic True-cut Mechanical Shearing Machine |

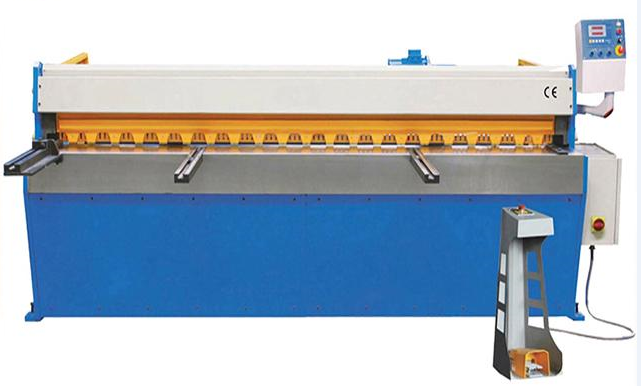

QH11D 3.2*3050 Automatic True-cut Mechanical Shearing Machine
1. CE certification
2. Heavy steel weldment construction for maximum stability
3. Quiet operation with brake motor, all components run on maintenance free bearings
4. Parallel blade guides ensure high cutting precision
5. Hardened and ground high quality HSS blades fitted
6. Calibrated squaring arm with front sheet supports
7. Hold-down system with slip-resistant rubber coating and front safety guard
8. Quick action blade-gap setting
9. Hand moveable foot pedal control (with emergency stop)
Model | QH11D- 3.2×1300 | QH11D- 3.2×1500 | QH11D- 3.2×2000 | QH11D- 3.2×2500 | QH11D- 3.2×2500A |
Shearing Thickness (mm) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
Shearing Width (mm) | 1300 | 1500 | 2000 | 2500 | 2500 |
Shear Angle | 1°30′ | 1°30′ | 1°45′ | 1° | 1°18′ |
Number of Stroke (min-1) | 47 | 47 | 47 | 47 | 47 |
Back gauge (mm) | 0-650 | 0-650 | 0-650 | 0-650 | 0-650 |
Height of Worktable (mm) | 800 | 800 | 800 | 800 | 800 |
Motor Power (kW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 |
Net Weight (kg) | 1450 | 1650 | 1800 | 2080 | 2200 |
Dimension (L×W×H) (mm) | 1950×1500 ×1500 | 2250×1500 ×1500 | 2750×1550 ×1500 | 3250×1600 ×1500 | 3350×1600 ×1550 |
