W11H Hydraulic ARC Adjust Plate Rolling 3 Rolls |

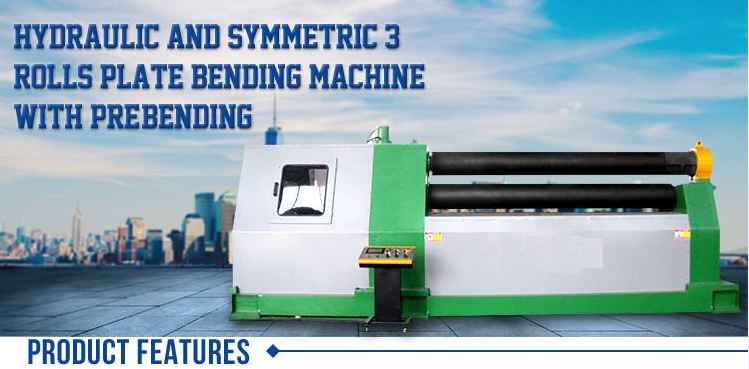

Hydraulic CNC Arc Adjust Plate Rolling Machine

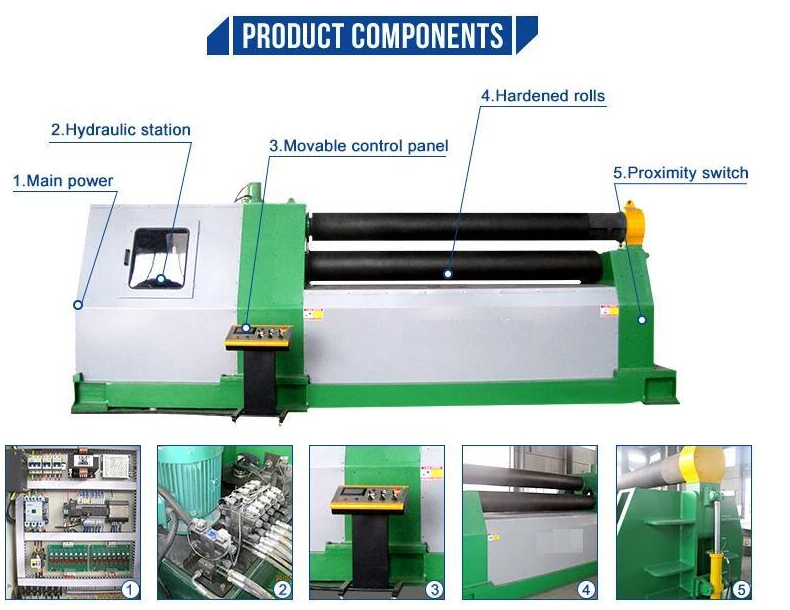

| Movable control panel,it’s easy operate; Digital readout for two bottom rollers lifting displacement,high precision cylinder; Two bottom rollers lifting by arc,leverage increase the forming force; The plate always in the state of clamping during rolling process,without shipping; The same diameter for three working rollers; Three rollers can get very close,small diameter tube can be bent and check cylinder; Cone bending attachment. Quality certificate such as CE and ISO9001. |
Model | Max. Bending thickness (mm) | Pre-bending thickness (mm) | Max. Bending width (mm) | Bottom roller diameter (mm) | Main power (Kw) |
W11H-6x2000 | 6 | 5 | 2000 | 160 | 4 |
W11H-4x2500 | 4 | 3.5 | 2500 | 160 | 4 |
W11H-8x2000 | 8 | 6.5 | 2000 | 190 | 5.5 |
W11H-6X2500 | 6 | 5 | 2500 | 190 | 5.5 |
W11H-10x2000 | 10 | 8 | 2000 | 210 | 7.5 |
W11H-8x2500 | 8 | 6.5 | 2500 | 210 | 7.5 |
W11H-6x3000 | 6 | 5 | 3000 | 210 | 7.5 |
W11H-12x2000 | 12 | 10 | 2000 | 230 | 11 |
W11H-10x2500 | 10 | 8 | 2500 | 230 | 11 |
W11H-8x3000 | 8 | 6.5 | 3000 | 230 | 11 |
W11H-16x2000 | 16 | 13 | 2000 | 270 | 11 |
W11H-12x2500 | 12 | 10 | 2500 | 270 | 11 |
W11H-10x3000 | 10 | 8 | 3000 | 270 | 11 |
W11H-20x2000 | 20 | 16 | 2000 | 300 | 11 |
W11H-12x3000 | 12 | 10 | 3000 | 300 | 11 |
W11H-30x2500 | 30 | 25 | 2500 | 390 | 22 |
W11H-25x3000 | 25 | 20 | 3000 | 390 | 22 |
W11H-30x3000 | 30 | 25 | 3000 | 420 | 30 |
