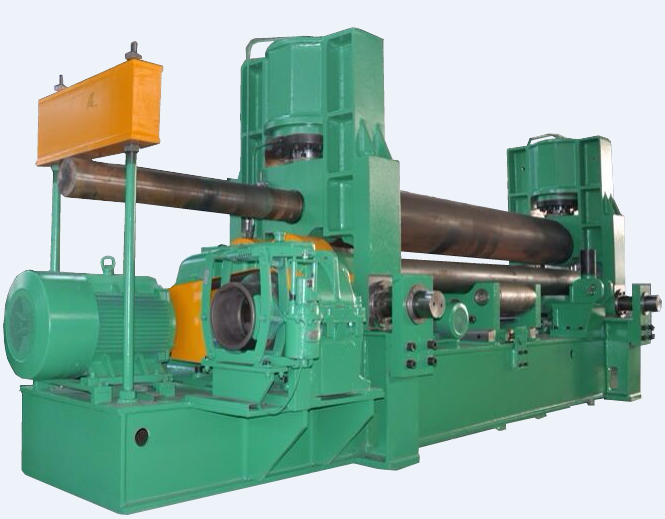

W11S Upper Roller Universal Rolling Machine 3 Rolls |
Performance:

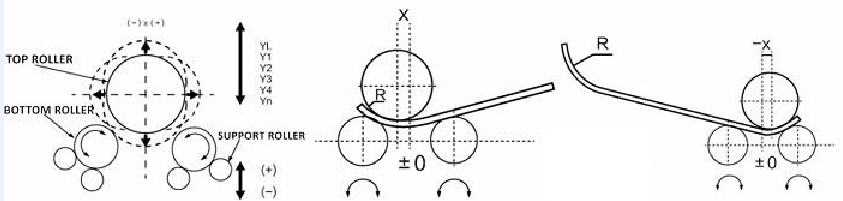

W11s series upper roller universal rolling machine can pre-bending and rolling to proceed the plate, with high
rolling precision, no need to use any subsidiary equipment, less investment. This machine is hydraulic three rollers
machine, it used to roll the low carbon steel (such as Q235-B20g20R), and Low alloy steel to cycle shape in normal
temperature.The upper roller can be moved horizontal and level.When cycle, to bring two lower rollers running
through motor and reducer.Because the standard height of lower roller is unchanged, it is convenience to feeding
and operating
1.preeminence goods precision
2.unique curved technology,the end part of high accuracy has in advance curved,no back angle when bending
continuously,curved course
3.man-machine interaction control interface,efficent intelligent operation
4.physical curved technology software ,man machine interaction window,curved course automatic compensation
5.single person operation ,efficent safeconvenient
6.rich curved shape,have rolling O type,U type,multistage R and other different shape
7.the option of much type is made,according to use or user requirement ,have economic type number to show
type and the CNC type option of numerical control
Model | Max. Roll Thickness (mm) | Max.Roll Width (mm) | Top Roller Diameter (mm) | Bottom Roller Diamater (mm) | Central Distance (mm) | Motor (Kw) |
W11S-8x1500 | 6 | 1500 | 175 | 125 | 160 | 3 |
W11S-8x2500 | 8 | 2500 | 235 | 135 | 180 | 4 |
W11S-10x3000 | 10 | 3000 | 280 | 145 | 200 | 5.5 |
W11S-16x2000 | 16 | 2000 | 270 | 150 | 245 | 7.5 |
W11S-20x3000 | 20 | 3000 | 375 | 200 | 330 | 18.5 |
W11S-25x2500 | 25 | 2500 | 380 | 220 | 360 | 22 |
W11S-30x3000 | 30 | 3000 | 450 | 250 | 400 | 30 |
W11S-35x3000 | 35 | 3000 | 510 | 275 | 460 | 45 |
W11S-40x4000 | 40 | 4000 | 630 | 340 | 610 | 55 |
W11S-45x4000 | 45 | 4000 | 660 | 360 | 650 | 75 |
W11S-50x5000 | 50 | 5000 | 790 | 420 | 780 | 90 |
W11S-55x3000 | 55 | 3000 | 620 | 360 | 650 | 75 |
W11S-60x3000 | 60 | 3000 | 650 | 380 | 7000 | 75 |
W11S-70x3000 | 70 | 3000 | 710 | 420 | 780 | 75 |
W11S-80x3000 | 80 | 3000 | 770 | 460 | 880 | 90 |
W11S-85x3000 | 85 | 3000 | 800 | 480 | 920 | 110 |
W11S-125x3000 | 125 | 3000 | 960 | 600 | 1120 | 160 |
W11S-110x4000 | 110 | 4000 | 990 | 600 | 1120 | 160 |
W11S-120x4000 | 120 | 4000 | 990 | 640 | 1280 | 150 |
