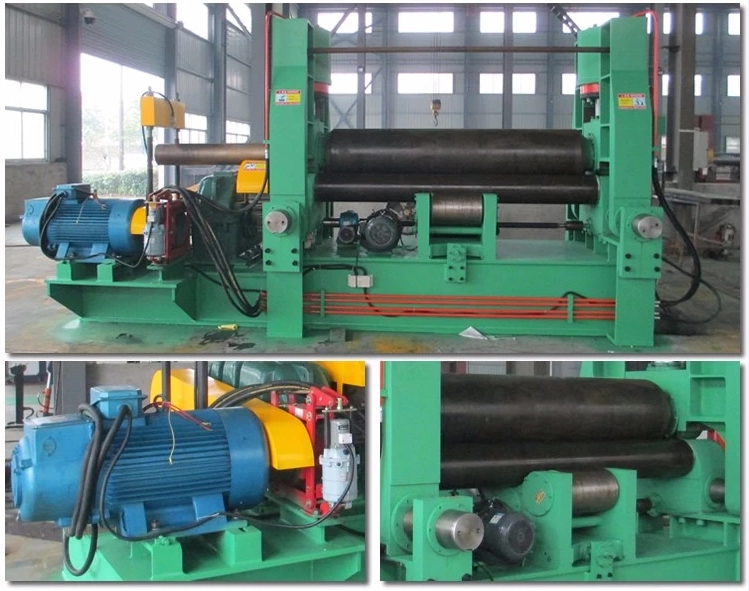

W11Y Hydraulic Symmetric Rolling Machine 3 Rolls |
Main Features
The structure style of this machine is 3 roller symmetrical.
The top roller do the movement of elevation in the central position of the two bottom rolls.
It's transmitted by screw nut and worm gear.two bottom rolls are main drive rolls.
They rotate by the meshing between the output gear of the gearbox and the bottom roller and
supply the torque for bending plate.It's compact easy operate and maintain.
Specification | Max thickness of coiled plate | Max width of coiled plate | Yielding limit of sheet metal | Coiling speed | Min full loading diameter of coiled plate | Diameter of top shaft | Diameter of Bottom shaft | Central distance between bottom shafts | Motor power | Hydraulic power |
mm | mm | mm | m/min | mm | mm | mm | mm | KW | KW | |
W11Y-25*2500 | 25 | 2500 | 245 | 4 | 1200 | 370 | 300 | 480 | 22 | 7.5 |
W11Y-25*3000 | 25 | 3000 | 245 | 4 | 1200 | 430 | 370 | 550 | 30 | 11 |
W11Y-30*2000 | 30 | 2000 | 245 | 4 | 1200 | 360 | 290 | 480 | 22 | 7.5 |
W11Y-30*2500 | 30 | 2500 | 245 | 4 | 1200 | 420 | 360 | 550 | 30 | 11 |
W11Y-30*3000 | 30 | 3000 | 245 | 4 | 1200 | 450 | 390 | 600 | 30 | 11 |
W11Y-40*2500 | 40 | 2500 | 245 | 3.5 | 1400 | 500 | 400 | 600 | 37 | 15 |
W11Y-40*3000 | 40 | 3000 | 245 | 3.5 | 1600 | 540 | 440 | 600 | 45 | 18.5 |
W11Y-50*3000 | 50 | 3000 | 245 | 3.5 | 2000 | 580 | 480 | 750 | 55 | 22 |
W11Y-60*3000 | 60 | 3000 | 245 | 3.5 | 2400 | 660 | 560 | 800 | 75 | 30 |
W11Y-70*3000 | 70 | 3000 | 245 | 3.5 | 2800 | 710 | 620 | 850 | 90 | 37 |
W11Y-80*3000 | 80 | 3000 | 245 | 3.5 | 3200 | 770 | 680 | 900 | 90 | 37 |
W11Y-90*3000 | 90 | 3000 | 245 | 3.5 | 3600 | 820 | 730 | 950 | 110 | 45 |
W11Y-100*3000 | 100 | 3000 | 245 | 3.5 | 4000 | 860 | 770 | 1000 | 110 | 45 |
W11Y-110*3000 | 110 | 3000 | 245 | 3.5 | 4400 | 900 | 810 | 1080 | 132 | 55 |
W11Y-120*3000 | 120 | 3000 | 245 | 3.5 | 4800 | 950 | 860 | 1160 | 132 | 55 |
