KC-400 Dsic Brake Lathe |

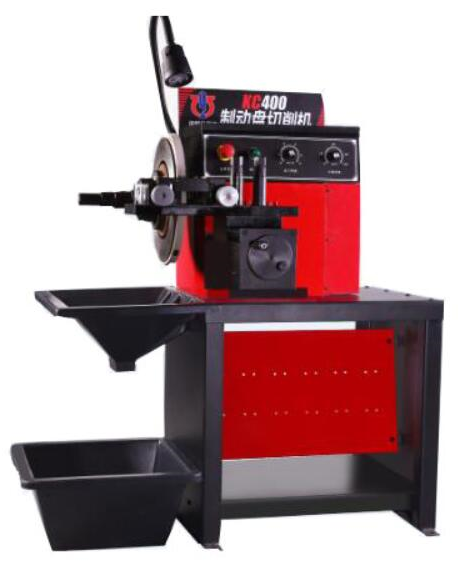

KC400 DISC BRAKE LATHE
Main specifications
Model | KC400 | Motor | 110V/220V/380V, 50-60Hz |
Spindle Speed | 0-120RPM | Feed Speed | 0-1.84″(0-46.8mm)/min |
Disc Travel | 4.33″(110mm) | Max Cutting Depth | 0.008″(0.2mm) |
Disc Diameter | 6″-15″(150-381mm) | Disc Thickness | 1.57″(40mm) |
Gross Weight | 247KG | Dimension | 1150*810*1200mm |
Feature:
1. With its rational construction, excellent performance and handiness, KC 400 is the brake lathe especially designed to cut discs.
2. The spindle and feeding are both driven by the independent motors, in order to achieve their infinitely variable speed.
3. The 6-edge blades are more efficient so as to increase the service life.
4. The customer can get the frequently-used accessories and tools easily from the hanging board and the tool box.
5. The big transparent safety shield can prevent the operator from the hazards.
6. KC 400 is equipped with a complete set of accessories to meet the needs of a variety of vehicles.
7. Accessories of special vehicles can be customized.
8. In all, KC 400 is the desirable maintenance equipment in 4S stores and the meduim-small repairing factories.
Standard Adapter
No. | Standard Accessories | Qty |
1 | Taper Cone 1.22″×2.24″ (31X57mm) | 1 |
2 | Taper Cone 1.77″×7.75″ (45X70mm) | 1 |
3 | Taper Cone 2.32″×2.95″(59X75mm) | 1 |
4 | Taper Cone 2.598″×3.22″ (66X82mm) | 1 |
5 | Arbor 1″(25.4mm) | 1 |
6 | Spacer (5/10/20mm) | 3 |
7 | Clamp 3.7″(94mm) | 2 |
8 | Clamp 4.57″(116mm) | 2 |
9 | Open End Wrench (21mm) | 1 |
10 | Open End Wrench (27—30mm) | 1 |
11 | Arbor Spring | 1 |
12 | Silencing Belt | 2 |
