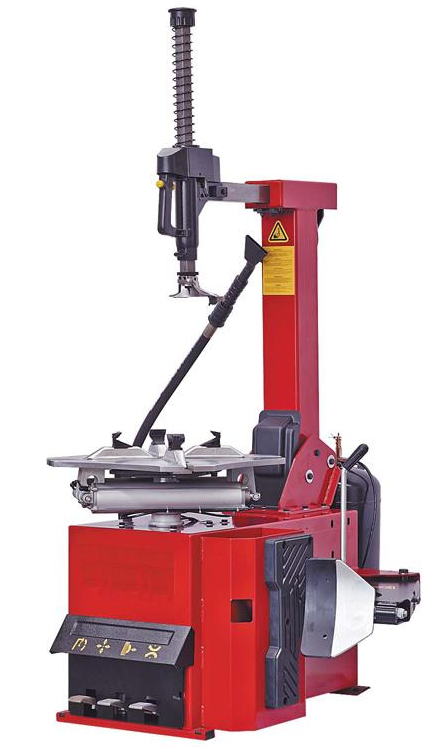

Feauture: ●For standard, low-profile and run-flat wheels of car and light commercial vehicles ●Machine post tilted backwards / forwards upon pedal operation (pneumatic) and pneumatically locked in working position ●Locking rim from 10”-24” ●Pedal assembly may draw from front cover ●Self-centring four-jaw turntable controlled via two clamping cylinders for correct clamping of the wheel ●Plastic protection inside jaws and on mounting head to avoid damage to alloy rims ●Large bead breaker blade ●Bead breaker with large anti-skid rubber pad A Rear air tank serves as tubeless tyre inflation device Specification: Motor power: 0.75kw/1.1 Kw Power supply:220V/380 V/110V Max. wheel diameter : 41"(1040 mm ) Max wheel width:14"(355mm) Outside clamping:10"~21" Inside clamping:12"~24" Air supply: 8bar-10bar ; Noise level: <70 dB. |
