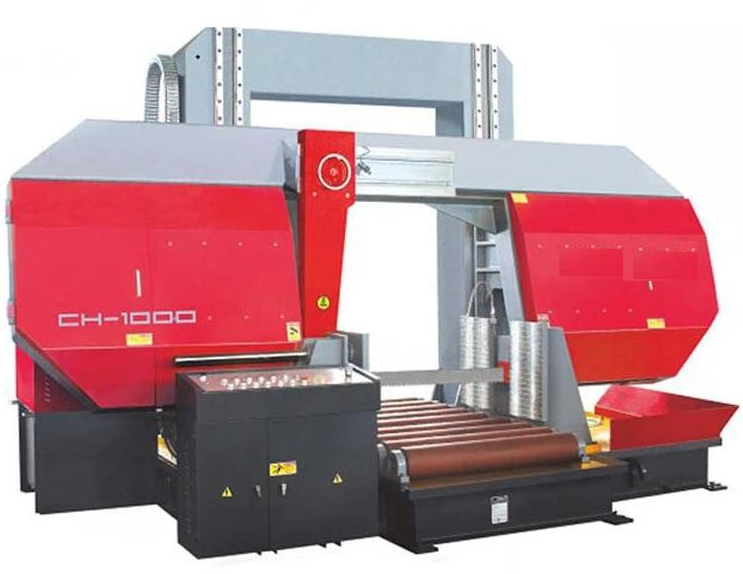

CH-1000 Double Column Semi Automatic


Feature:

Double-column portal horizontal band sawing machine series is a kind of large-and middle sized machine

in automatic and semiautomatic model widely uses for cutting ferrous-andnon-ferrous metals. It has the

advantages of narrow sawing cut, material saving, energy saving, high sawing precision, convenient operation and high.


Specification:

Model

CH-1000

CH-1200

CH-1300

Cutting capacity

Round: Φ1000mm

Rectangular: 1000x1000mm

Round: Φ1200mm

Rectangular: 1200x1200mm

Round: Φ1300mm

Rectangular: 1300x1300mm

Blade speed

15 – 60  m/min inverter

15 – 60  m/min inverter

15 – 60  m/min inverter

Blade size

67x1.6x9820mm

67x1.6x10800mm

67x1.6x11800mm

Motor main

11 kw

15 kw

15 kw

Motor hydraulic

3.75kw

3.75kw

3.75kw

Coolant pump

0.09kw

0.09kw

0.09kw

Workpiece clamping

Hydraulic vise

Hydraulic vise

Hydraulic vise

Blade tensioning

Hydraulic

Hydraulic

Hydraulic

Main drive

Gear drive

Gear drive

Gear drive

Table height

520kgs

520kgs

520kgs

Machine size

4560x2170x3040mm

4835x2180x3340mm

5050x2250x3380mm
