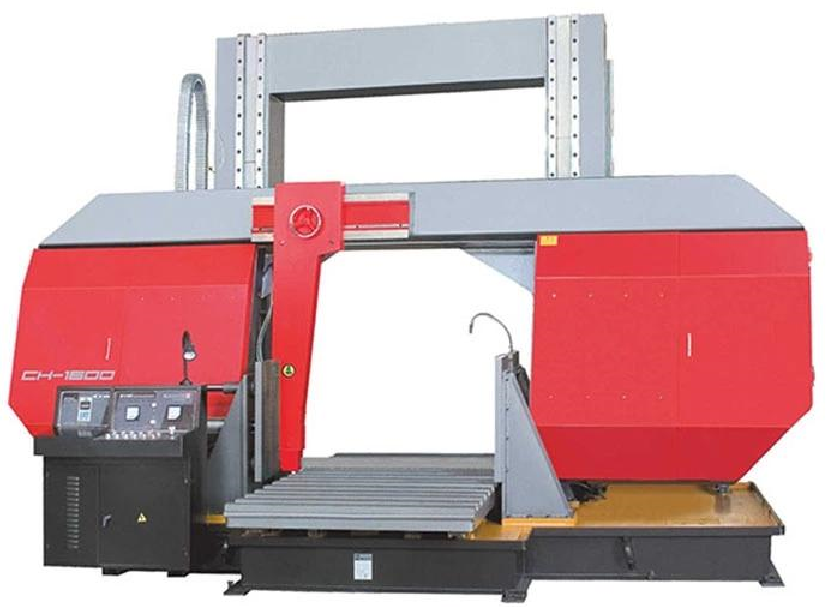

CH-1600 Double Column Semi Automatic |
Feature:
Double-column portal horizontal band sawing machine series is a kind of large-and middle sized machine in automatic
and semiautomatic model widely uses for cutting ferrous-andnon-ferrous metals. It has the advantages of narrow
sawing cut, material saving, energy saving, high sawing precision, convenient operation and high.
Specification:
Model | CH-1600 | CH-1800 | CH-2500 |
Cutting capacity | Round: Φ1600mm Rectangular: 1600x1600mm | Round: Φ1800mm Rectangular: 1800x1800mm | Round: Φ2500mm Rectangular: 2500x2500mm |
Blade speed | 10 – 50 m/min inverter | 10 – 50 m/min inverter | 10 – 50 m/min inverter |
Blade size | 80x1.6x15380mm | 80x1.6x17000mm | 80x1.6x21000mm |
Motor main | 18.5 kw | 18.5 kw | 22 kw |
Motor hydraulic | 5.5kw | 5.5kw + 1.5kw | 7.5kw + 1.5kw |
Coolant pump | 0.37kw | 0.37kw | 0.37kw |
Workpiece clamping | Hydraulic vise | Hydraulic vise | Hydraulic vise |
Blade tensioning | Hydraulic | Hydraulic | Hydraulic |
Main drive | Gear drive | Gear drive | Gear drive |
Table height | 700kgs | 1050kgs | 1050kgs |
Machine size | 6800x2300x4900mm | 6800x4000x4100mm | 10520x4940x5880mm |
Standard equipment:
blade cleaning brush
working light
saw frame height selector gauge
hydraulic blade tension
one piece of bi-metal saw blade
one set of tools with toolbox
power roller table 2M long
laser projector
inverter
Optional equipment:
Variable vise pressure
Automatic chip conveyor
Power roller table 2M long
Hydraulic shuttle table feeding 2M
