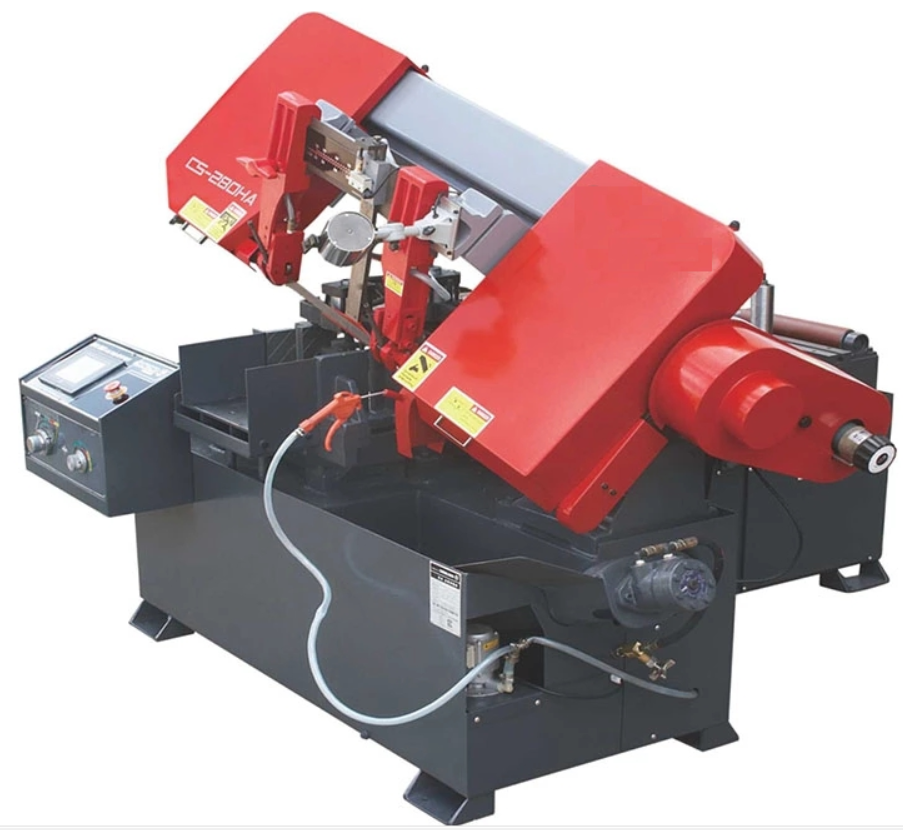

CS-280HA Pivot Fully Automatic |
Feature:
Mainly used for cutting various ferrous metal and non-ferrous metal.the structure of the machine tool is reasonable
with stable and reliable performance and high precision. It is ideal equipment for material sizing of medium/small lot.
Specification:
Model | CS-280HA (Pivot Full Auto) | CS-330HB | |
Cutting capacity | Round: Φ280mm Quadrate: 350x250mm Bundle cutting: 200x100mm | Round: Φ330mm Quadrate: 330x330mm | |
Saw blade | speed | 20 – 90 m/min | 20 – 80 m/min |
size | 27x0.9x3505mm | 34x1.1x4240mm | |
guides | Carbide and bearing blade guides | ||
cleaning | Power wire brush & flood coolant | ||
tension | Manual | hydraulic | |
Motor power | Blade | 2.2 kw | 3 kw |
hydraulic | 0.75kw | 0.75kw | |
coolant | 0.06kw | 0.06kw | |
Multiple feed | 400mm x 9 times | ||
Work vise | Hydraulic | Hydraulic | |
Table height | 1300kgs | 1500kgs | |
Machine size | 2400x2050x1700mm | 2040x2030x1400mm | |
Standard equipment:
Power blade cleaning brush
Working light
Automatic feed roller
Automatic work height control
Roller rack 2M long
One piece of bi-metal saw blade
One set of tools with toolbox
Automatic chip conveyor
Operation manual
PLC control
Bundle cutting device
Optional equipment:
Roller rack 2M long
Variable vise pressure ( cut tube)
