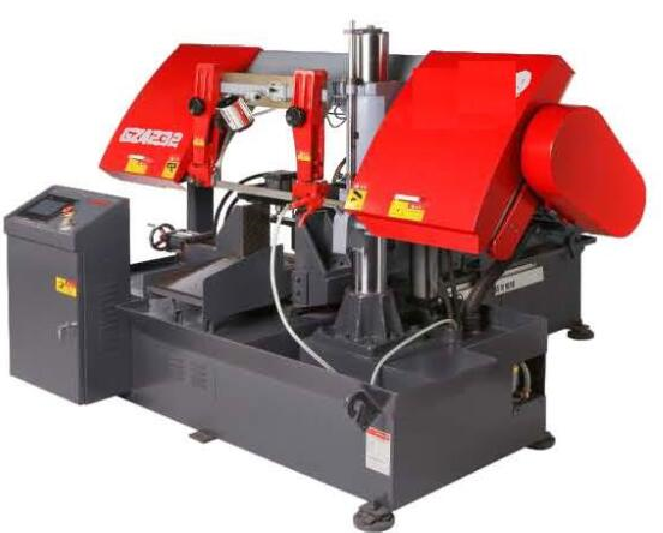

GZ4228 GZ4230 GZ4233 Pivot Fully Automatic |
Feature:
Mainly used for cutting various ferrous metal and non-ferrous metal.the structure of the machine tool is
reasonable with stable and reliable performance and high precision. It is ideal equipment for material
sizing of medium/small lot.
Specification:
Model | GZ-4228 | GZ-4230 | GZ-4233 | GZ-4240 | GZ-4250 | |||
Cutting capacity | Round: Φ280mm Quadrate: 350x280mm | Round: Φ300mm Quadrate: 300x300mm | Round: Φ330mm Quadrate: 330x330mm | Round: Φ400mm Quadrate: 400x400mm | Round: Φ500mm Quadrate: 500x500mm | |||
Saw blade | speed | 30/50/75/95 m/min | 30/50/75/95 m/min | 30/50/75/95 m/min | 19/30/50/65/90 m/min | 25/45/75 m/min | ||
size | 34x1.1x4115mm | 34x1.1x4115mm | 34x1.1x4115mm | 34x1.3x4650mm | 41x1.3x5450mm | |||
guides | Carbide and bearing blade guides | |||||||
cleaning | Power wire brush & flood coolant | |||||||
tension | Manual | Manual | Manual | Manual | Manual | |||
Motor power | Blade | 3 kw | 3 kw | 3 kw | 4 kw | 4 kw | ||
hydraulic | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw | |||
coolant | 0.06kw | 0.06kw | 0.06kw | 0.06kw | 0.06kw | |||
Multiple feed | 500mm x 9 times | |||||||
Machine size | 1840x2150x1350mm | 2060x1950x1450mm | 2060x2195x1450mm | 2265x2200x1550mm | 2660x2300x1800mm | |||
Standard equipment:
Power blade cleaning brush
Working light
Automatic feed roller
One piece of bi-metal saw blade
One set of tools with toolbox
Operation manual
NC control
Optional equipment:
Roller rack 2M long
Variable vise pressure ( cut tube)
Automatic chip conveyor
Inverter
Hydraulic blade tension
