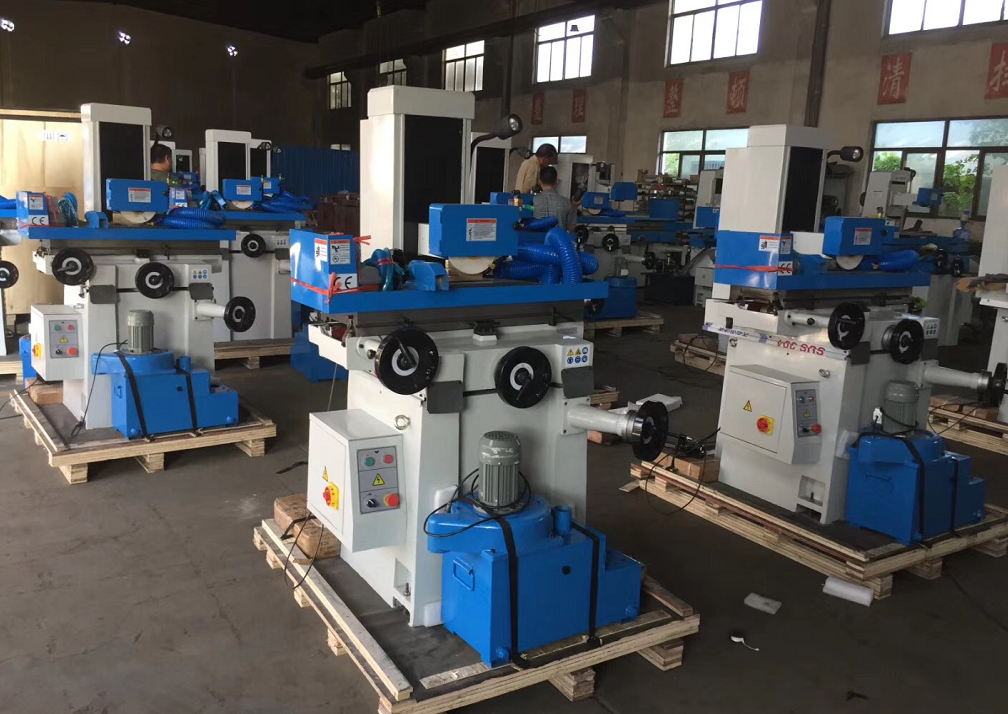

MY4080 MY40100 MY40125 Hydraulic Grinder |
Characteristics of machine tools
1. The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
2. Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
3. The main mechanical valve is a special valve grinder, which is divided into two parts, the mechanical commutation control and
throttle control. Throttle control part and unloading function, can realize the station start and stop.
4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user
needs with a permanent magnet sucker or electromagnetic sucker.
Specification:
Model | Unit | MY4080 | MY40100 | MY40125 |
Max workpiece to be ground | mm | 800*400*405 | 1000*100*405 | 1250*400*405 |
Max table vertical movement | mm | 820 | 1020 | 1270 |
Front and rear wheel feed | mm | 440 | 440 | 440 |
Distance from table surface to spindle center | mm | 580 | 580 | 555 |
Max work load | kg | 400 | 400 | 450 |
Number of T-Slot | mm*n | 18*3 | 18*3 | 18*3 |
Table speed | m/min | 0-26 | 0-26 | 0-26 |
Before and after automatic feed (CVT) | mm | 0.5-20 | 0.5-20 | 0.5-20 |
Front and rear wheel feed | mm | 0.02/Graduation 4/revolution | 0.02/Graduation 4/revolution | 0.02/Graduation 4/revolution |
Wheel size (dia*width*bore) | mm | 350*32*127 | 350*32*127 | 350*32*127 |
Spindle speed | r/min | 1450 | 1450 | 1450 |
Each ring of lifting weight tuning mechanism | mm | 0.04 | 0.04 | 0.04 |
Fine tuning mechanism grid feed rate | mm | 0.001 | 0.001 | 0.001 |
Spindle motor | kW | 5.5 (Y132S-4 B5) | 5.5 (Y132S-4 B5) | 5.5 (Y132S-4 B5) |
Machine size (L*W*H) | mm | 2260*1790*1917 | 2260*1790*1917 | 3100*1790*1917 |
Packing size (L*W*H) | mm | 2400*1990*2180 | 2800*1990*2180 | 3300*1990*2180 |
N.W./G.W. | Kg | 3000/3300 | 3800/4200 | 4200/4600 |
