Protabel Line boring & welding machine |

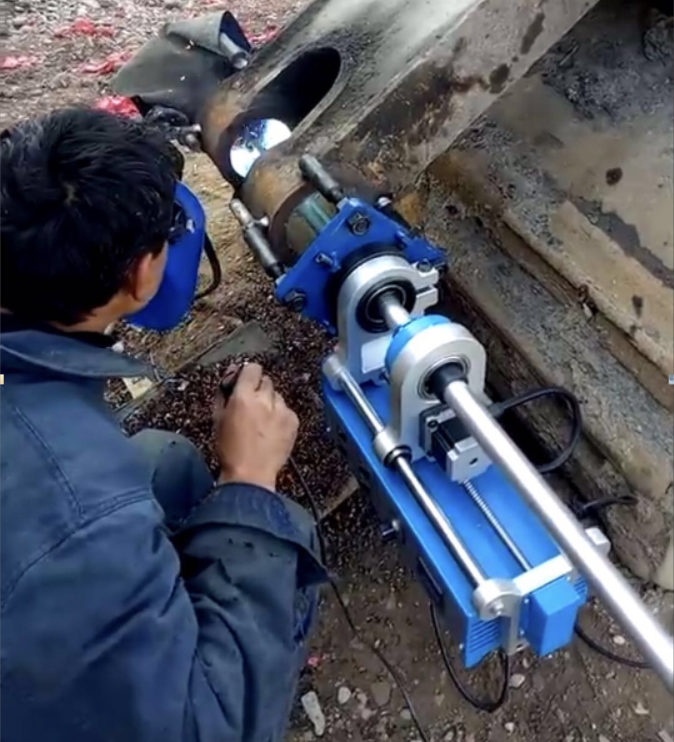

Protable line boring machine PL240
MODEL: PL240
Max processing hole diameter: 240mm
Minprocessing hole diameter: 55mm
Max processing travel: 300mm( special request acceptable)
Max feed depth: 5mm on one side (A3steel)
Surface roughness: Ra3.2
Deviation form circular: <0.02mm
Gross weight of equipment: 100KG

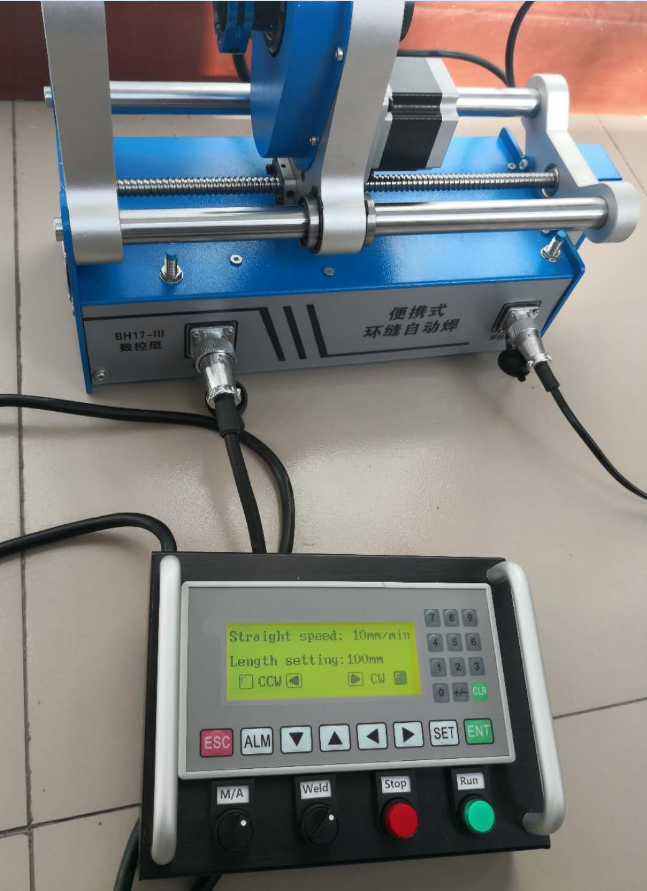

Protable Welding Machine BH-17:
Product Parameters
Working voltage: AC 220V / 50Hz
Maximum power: 100W
Machine weight: 11kg
Machine size: L 400 * W 210 * H 290
Spindle speed: 0.1-5.0r/min
Welding range: Φ55-250mm
Axial travel: 245mm
Wire diameter: Φ1.0 is recommended
Environmental Conditions
Ambient temperature: -10 °C ~ +40 °C.
Storage temperature: -25 °C ~ +55 °C.
Relative humidity: 20°C≤85% 40°C≤ 50%
It should be placed in a dry and ventilated place to prevent direct sunlight and rain.
Apply oil to the lead screw and guide rail during long-term storage.
