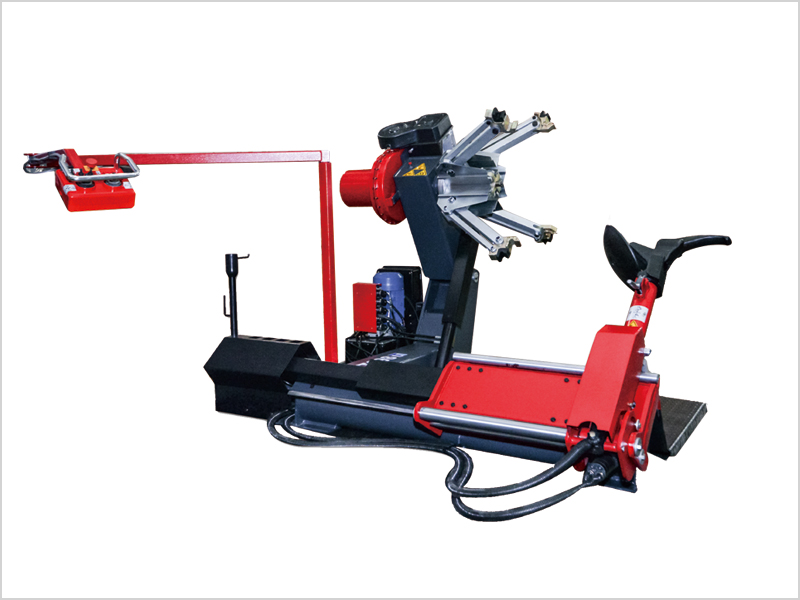

Truck Tyre Changer T698 |
TECHNICAL DATA
| Rim Diamter | 14" - 42" |
| Max.wheel weight | 1600kg |
| Max Wheel Width | 1050mm |
| Max Tyre Diameter | 2300mm |
| Hydraulic Pump Motor | 2.2KW 380V - 3PH - 50HZ（220V Optional） |
| Gearbox Motor | 2.2KW 380V - 3PH - 50HZ（220V Optional） |
| Bead Breaker Force | 3300kg |
| Operation Control Voltage | 24V |
| Machine Weight Approx | ≈760kg |
| Overall Dimensions Approx | 2500×2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |
| Noise Level | ≤70db |
| Temperature | 0℃~40℃ |
PRODUCTS INTRODUCTION
· Fully - Automatic universal truck tyre changer T698 for industrial、agricultural and earthmoving wheels
· Rim capacity 14” - 42"
· Double rotational speeds optional
· Italian pump optional
PRODUCTION DETAILS
OPTIONAL ACCESSORIES
Alu alloy rims protection rings Alu alloy rims protection set Tubeless roller

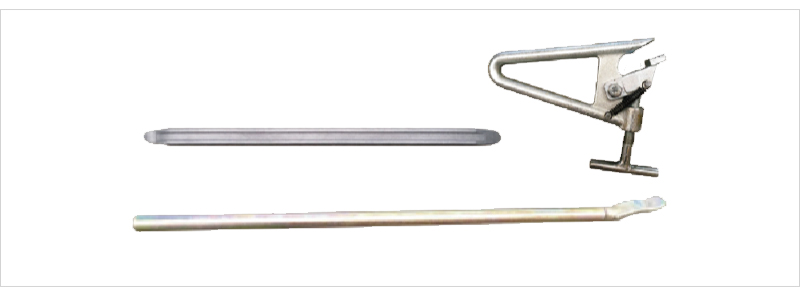

STANDARD ACCESSORIES

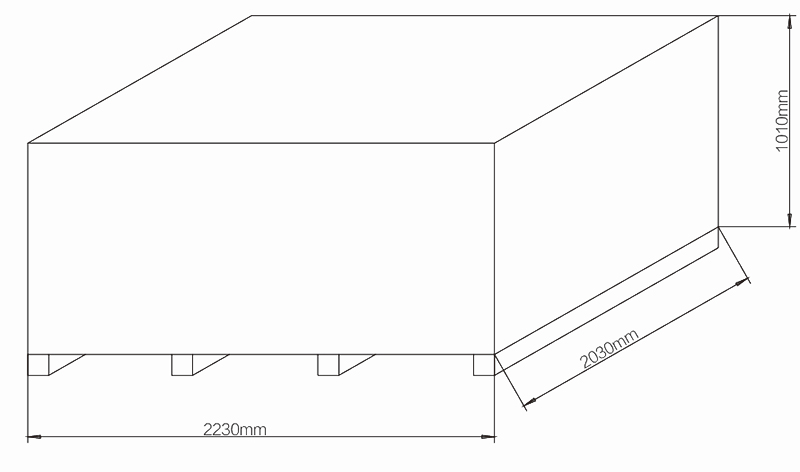

WEIGHT&DIMENSIONS
Model：T698
Gross Weight（kg）：850
Outside Dimension L×W×H（mm） 2230×1970×1050
