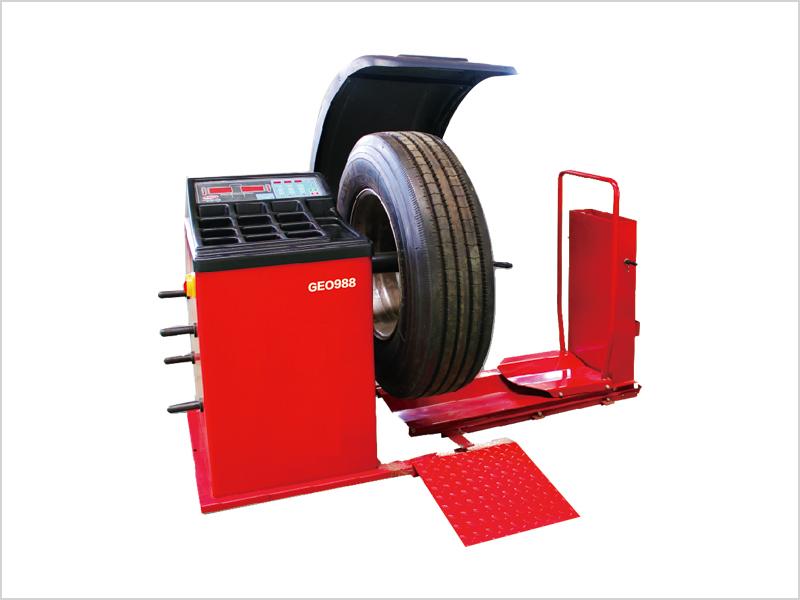

Truck Wheel Balancer CEO988 |
TECHNICAL DATA
| Rim Diamter | 16" - 24” |
| Rim Width | 5.7 - 20" |
| Max.wheel weight | 200kg |
| Max Wheel diameter | 1250mm |
| Air pressure | 8- 10 bar |
| Testing Time | 12- 20s |
| Protection Cover | supplied |
| Pneumatic Built-In Lift | supplied |
| Power Supply | 220V 50Hz 1PH |
| Standard Accessories（supplied） | International universal standard standard flange tapering(diameter range 40-285mm) wheel width calipers,lock nut Wheel ballast weight pliers |
PRODUCTS INTRODUCTION
· Keypad control panel with bright LED displays indicate 2 weight amounts 2 weight locations,3D rim dimension data entry and 3 selection balance mode.
· Precise wheel clamping system flange,easy and fast to fix the wheel on the measuring.
· Balancer axle.Safety set with microswich the wheel cover is on position then the wheel begins to rotate.
PRODUCTION DETAILS
Wheel Lifter 50mm Mainshaft Display Keyboard Wheel Protection Cover
STABDARD ACCESSORIES
OPTIONAL ACCESSORIES
200mm Spacer and Cone
WEIGHT&DIMENSIONS
Model：GEO988
Gross Weight（kg）：370
Outside Dimension L×W×H（mm）：1340×940×1180
