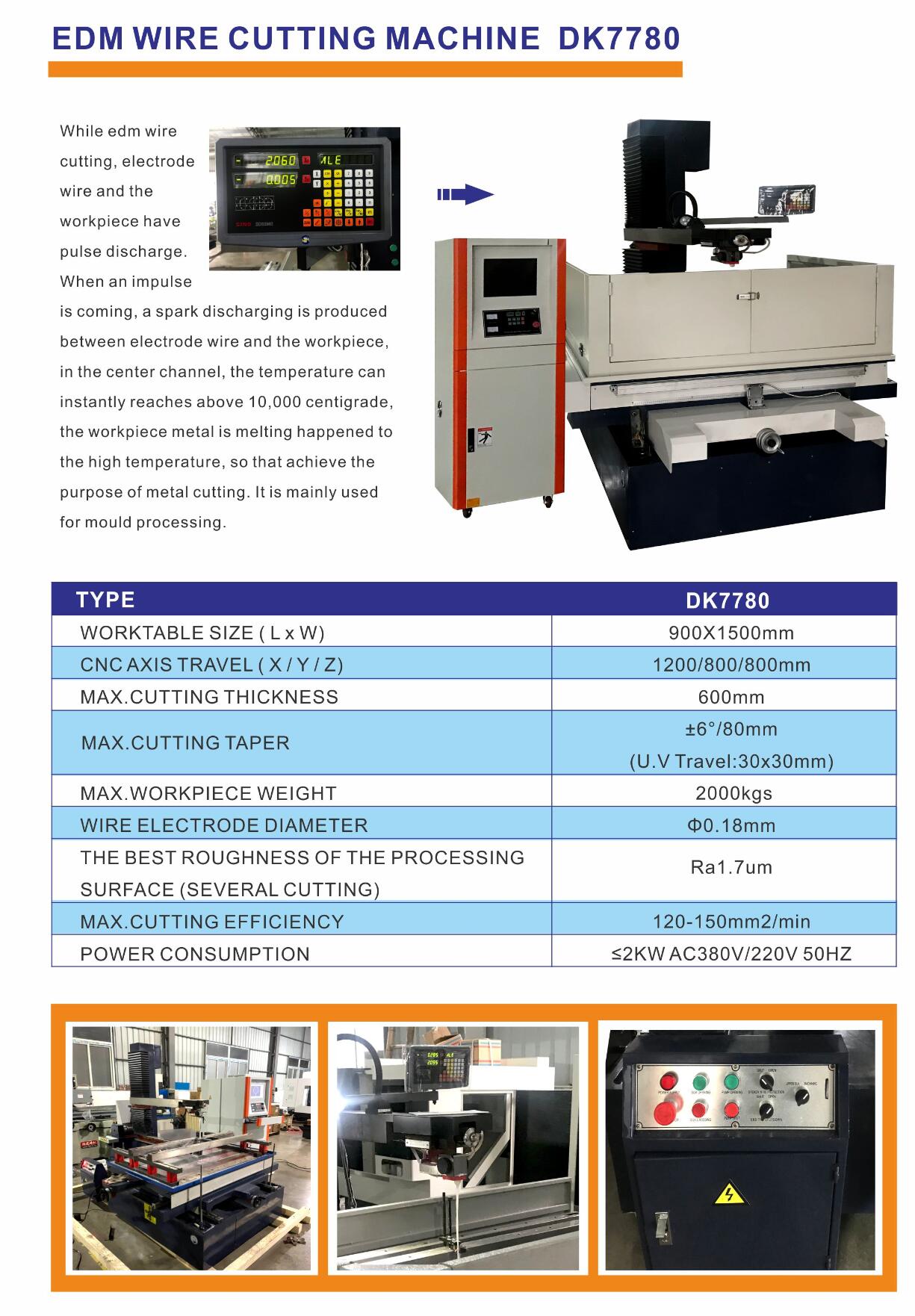

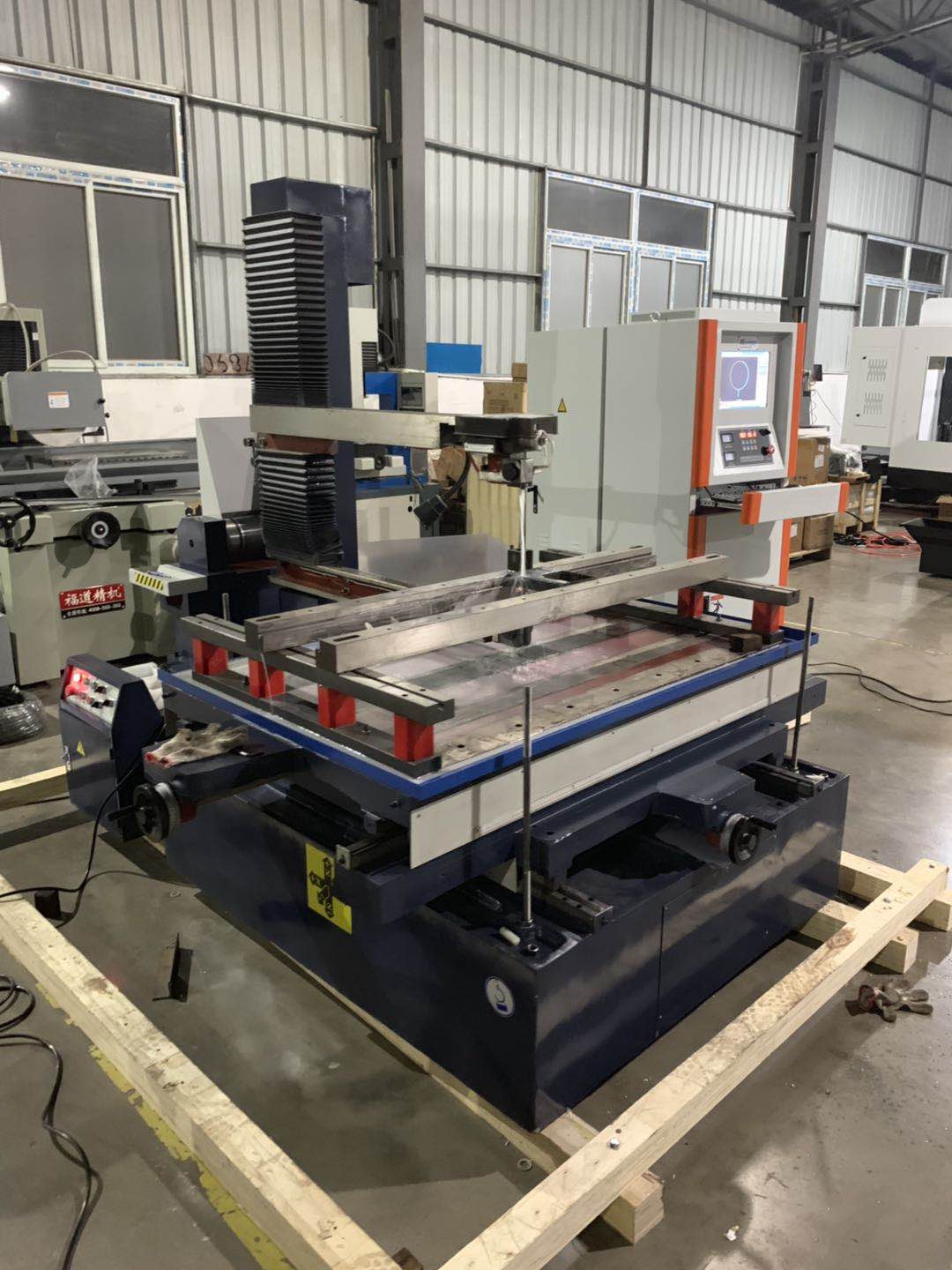

EDM WIRE CUTTING MACHINE DK7780
While EDM wire cutting, electrode wire and the workpiece have pulse discharge. When an impulse is coming, a spark discharging is produced between electrode wire and the workpiece, in the center channel, the temperature can instantly reaches above 10,000 centigrade, the workpiece metal is melting happened to the high temperature, so that achieve the purpose of metal cutting. It is mainly used for mould processing.
TYPE | DK7780 |
WORKTABLE SIZE ( L x W) | 900X1500mm |
CNC AXIS TRAVEL ( X / Y / Z ) | 1200/800/800mm |
MAX.CUTTING THICKNESS | 600mm |
MAX.CUTTING TAPER | ±6°/80mm (U.V Travel: 30x30mm) |
MAX.WORKPIECE WEIGHT | 2000kgs |
WIRE ELECTRODE DIAMETER | Φ0.18mm |
THE BEST ROUGHNESS OF THE PROCESSING SURFACE (SEVERAL CUTTING) | Ra1.7um |
MAX.CUTTING EFFICIENCY | 120-150mm2/min |
POWER CONSUMPTION | ≤2KW AC380V/220V 50HZ |
