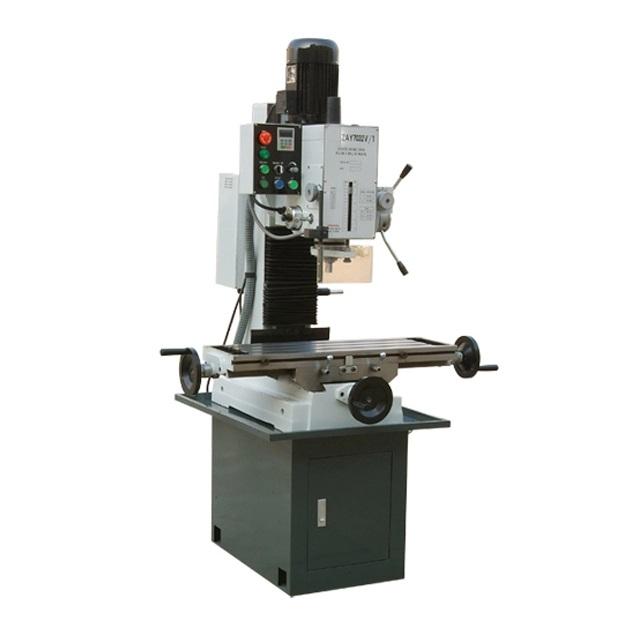

ZAY7032V/1 ZAY7040V/1 ZAY7045V/1 |
Feature:
The spindle is variable speed,and is directly connected with the main motor through time-belt,which reduced the noise greaty.
The spindle speed can be adjusted variably during its range of 0-1500r.m.p.Easily operating and reading.
Spindle lubricating with grease ,no oil leakage.
Milling,drilling,tapping,boring and reaming.
Micro feed precision.
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Spindle can automatic feeding and spindle speed step-cyclically.
Product main technical parameters:
ITEM | ZAY7032V/1 | ZAY7040V/1 | ZAY7045V/1 |
Max.drilling capacity | 32mm | 40mm | 45mm |
Max Face mill capacity | 63mm | 80mm | 80mm |
Max End mill capacity | 20mm | 32mm | 32mm |
Distance from spindle nose to table | 450mm | 450mm | 450mm |
Min.distance from spindle axis to column | 260mm | 260mm | 260mm |
Spindle travel | 130mm | 130mm | 130mm |
Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
Range of spindle speed (2 steps) | 100-530, 530-2800r.p.m | 100-530, 530-2800r.p.m | 100-530, 530-2800r.p.m |
Auto-feeding step of spindle | 6 | 6 | 6 |
Automatic feeding amount of spindle | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
Table size | 800×240mm | 800×240mm | 800×240mm |
Forward and backward travel of table | 175mm | 175mm | 175mm |
Left and right travel of table | 500mm | 500mm | 500mm |
Motor power(AC) | 1.1KW | 1.1KW | 1.5KW |
Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
Net weight/Gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg |
Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
Loading amount | 36pcs/20ft | 36pcs/20ft | 36pcs/20ft |
