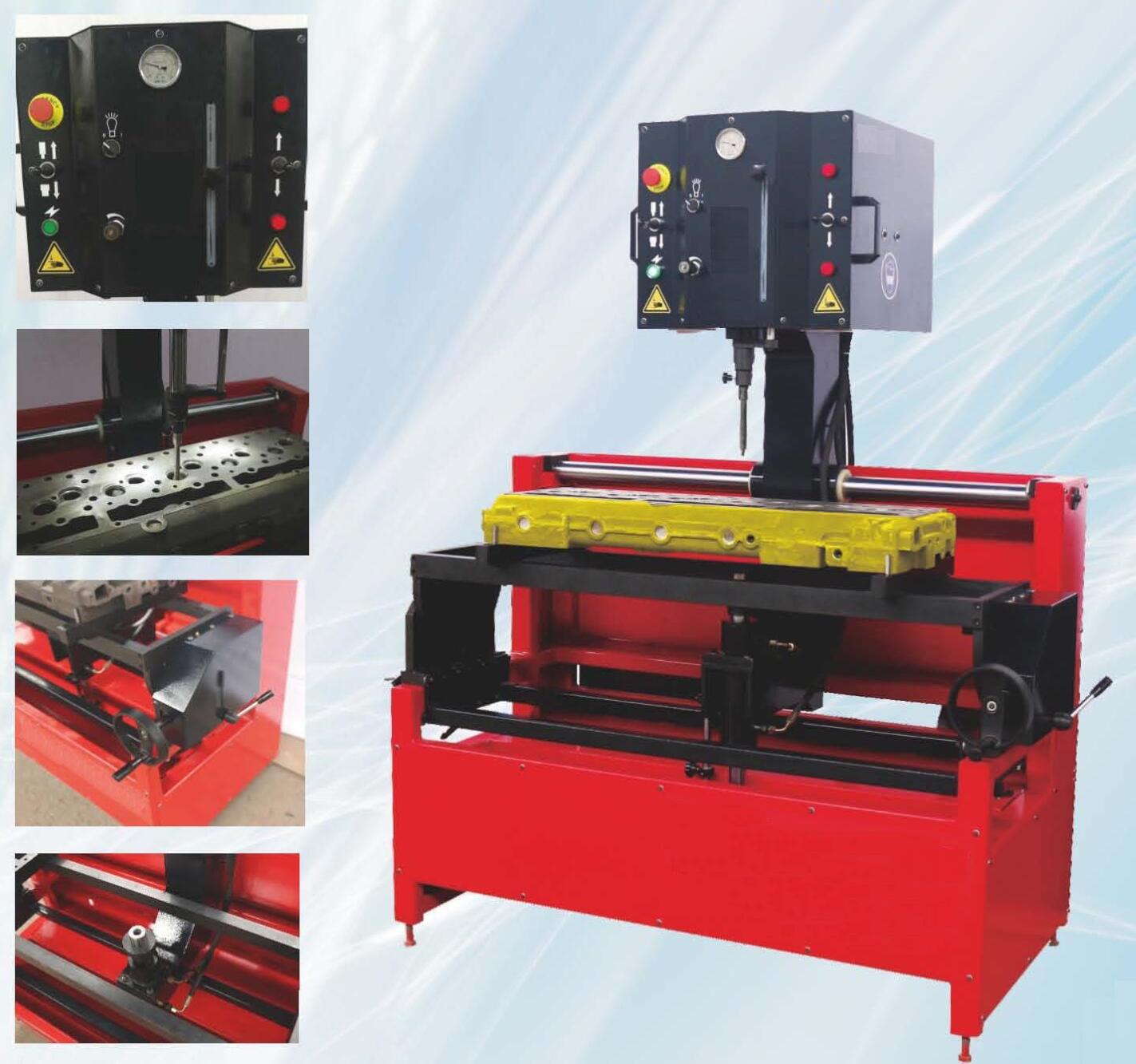

HYDRAULIC VALVE GUIDE PRESS MACHINE TGP1200
For easy, safe and fast valve guide replacement. Reduces operator fatigue and costly operator error. The bench is equipped with a hydraulic cylinder for operation also on engine valves assembly and disassembling. Standard equipment includes tools for valve guide replacement (dismounting pilots), standard set of installation tools, and set of different size of compressing foot for any application.
SPECIFICATIONS
Working table length: 1200mm Transverse movement: 1100mm Longitudinal movement: 150mm Upper cylinder movement: 230mm Lower cylinder movement: 140mm Table rotation: 50° Working pressure: 200bar Adjustable pressure: 0 - 200bar Motor power: 1.5kw Oil tank: 9 L Power supply: 380V, 50HZ, 3PH
Machine Dimension
Length: 1370mm Width: 930mm Hight: 1850mm Weight: 400kg |
