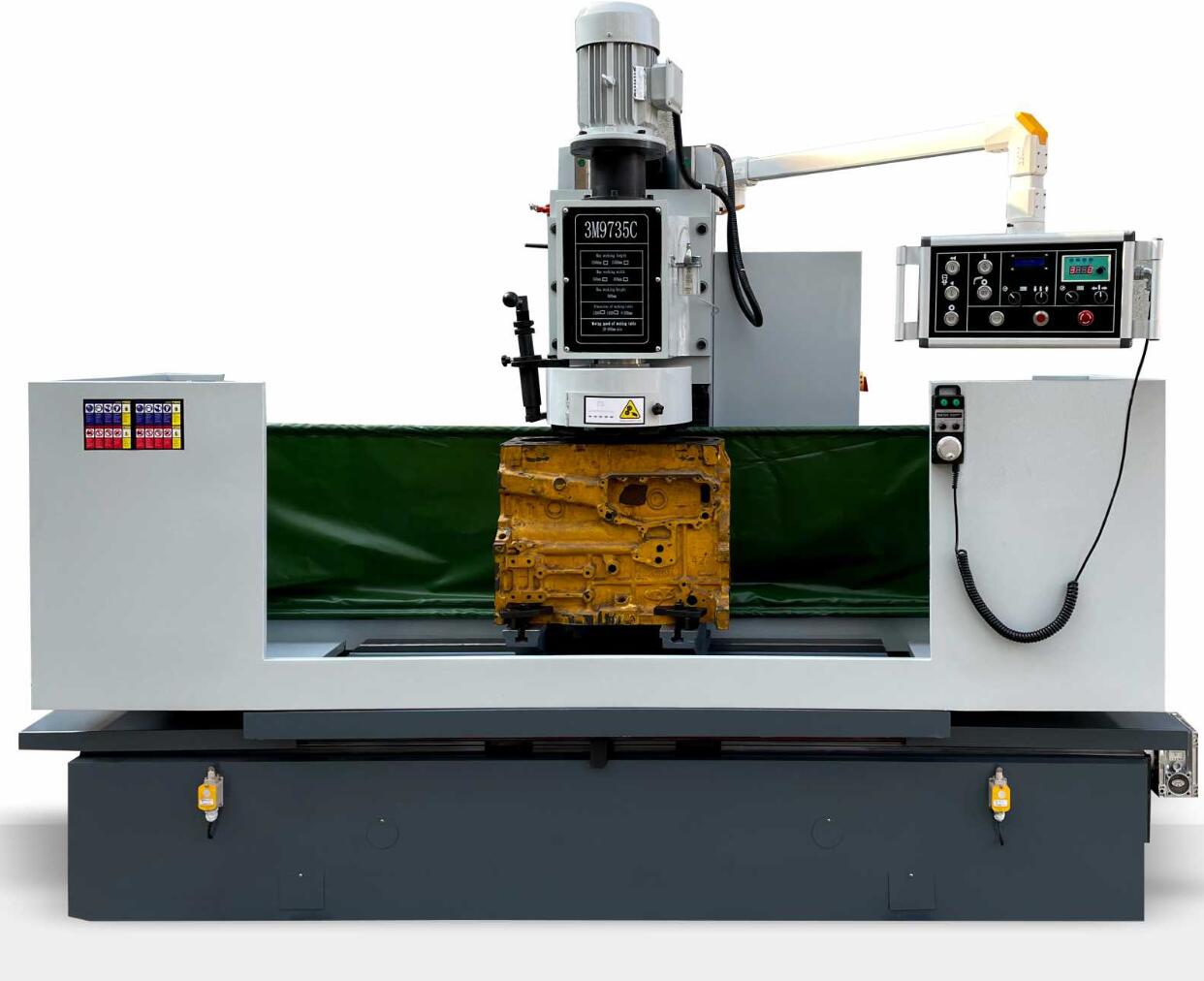

Cylinder Block Surface Grinding-Milling Machine 3M9735Cx150
This machine is design for grinding cylinder block and cylinder head, machine use high level casting iron , The stability and machining accuracy of the machine tool are guaranteed.
1, The whole machine is driven by servo motor and ball screw. It provides stable torque output to ensure smooth transmission.
2，the headstock up and down use linear guide rails and controlled by servo motor. Moving speed is easy to adjust, and micro feeding can be carried out with electronic handwheel.
2: A digital read out shows position of the X and Z , also the feed amount can be displayed on the control panel.
3: The left and right movement also use linear guide and servo motor, which provide large torque and stable movement. It can do fast move through control panel, or be micro adjusted through the electronic handwheel.
4: This machine was strong build. high processing efficiency and convenient operation.
Model | 3M9735C x 130 | 3M9735C x 150 | 3M9740C x 130 | 3M9740C x 150 |
Dimension of worktable | 1300 x 500mm | 1500 x 500mm | 1300 x 500mm | 1500 x 500mm |
Max. grinding length | 1300mm | 1500mm | 1300mm | 1500mm |
Max. grinding width | 350mm | 350mm | 400mm | 400mm |
Max. grinding height | 800mm | 800mm | 800mm | 800mm |
Grinding head diameter | 350mm | 350mm | 400mm | 400mm |
Number of segments | 10pcs | 10pcs | 12pcs | 12pcs |
Spindle motor type | Double speed motor | Double speed motor | Frequency motor | Frequency motor |
Spindle motor power | 1.5 / 2.4kw | 1.5 / 2.4kw | 3.3kw | 3.3kw |
Spindle speed | 700 / 1400rpm | 700 /1400 rpm | 150-1400rpm | 150-1400rpm |
X / Z axis guideway type | Linear Rails | Linear Rails | Linear Rails | Linear Rails |
X / Z axis screw type | Ball Screw | Ball Screw | Ball Screw | Ball Screw |
Z axis feed motor type | 750w | 750w | 750w | 750w |
Z axis feed motor power | Servo Motor | Servo Motor | Servo Motor | Servo Motor |
X axis feed motor type | 750w | 750w | 750w | 750w |
X axis feed motor power | Servo Motor | Servo Motor | Servo Motor | Servo Motor |
Water pump motor | 40w | 40w | 40w | 40w |
Packing Dimension | 3100x1150x2250mm | 3100x1150x2250mm | 3100x1150x2250mm | 3100x1150x2250mm |
N.W / G.W | 2800/3000kgs | 3000/3200kgs | 2800/3000kgs | 3000/3200kgs |
