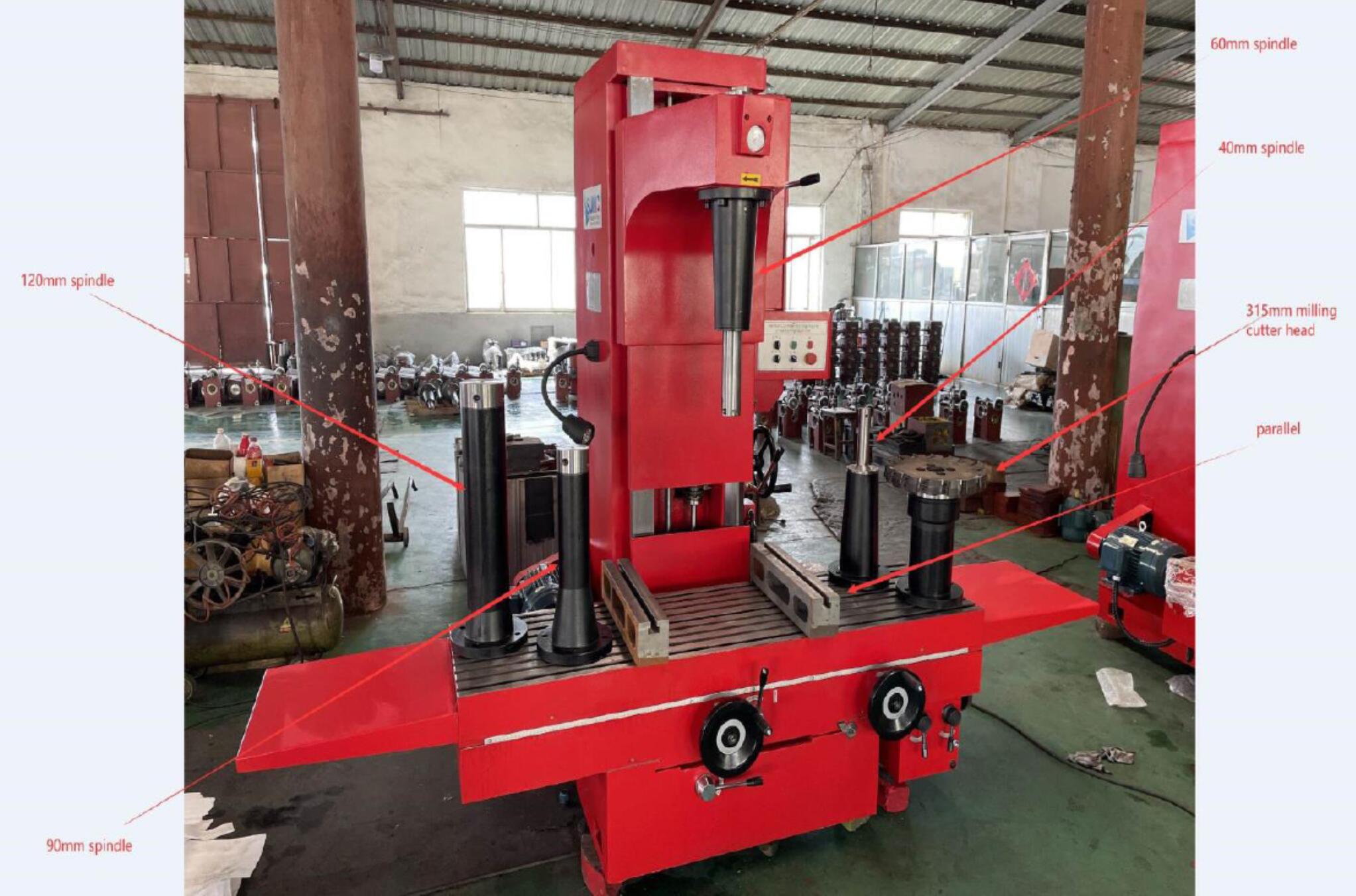

Cylinder Boring Machine T8018D

1	Name	Vertical Cylinder Boring Machine
2	Model	T8018D
3	Boring Diameter (mm)	Φ 42- Φ 180 mm (with optional accessories)
4	Max Boring Depth(mm)	500mm
5	Spindle Speed(R/Min)	0.05, 0.10, 0.20
6	Main Motor (kw)	3.3 / 4.0
7	Net / Gross weight (kgs)	3500 / 3700kgs
8	Machine size (LWH)	269015002325mm
9	Package size (LWH)	160019102575mm
10	Producting time‘	3-20 days
11	Warranty	2 years (no man-made reasons)
12	Electrical power	380v, 3ph, 50/60hz or 220v,1ph,50/60hz
13	Standard accessories	1). 2 boring heads with ø56mm and with ø75mm (or boring heads with ø60mm and with ø90mm); 2). 4 cutters; 3). 6 adjustable foot pads; 4). 2 wrenches and 1 oiler.
14	Optional accessories	1). Milling-surface head; 2). 30 °and 45 ° V-type fixture; 3). Parallel bracket; 4). Quick fixture; 5). Tooling gauge; 6). Boring heads with ø30mm; 7). Boring heads with ø40mm; 8). Boring heads with ø120mm.
