Line Boring Machine - T8115VF/T8120VF |

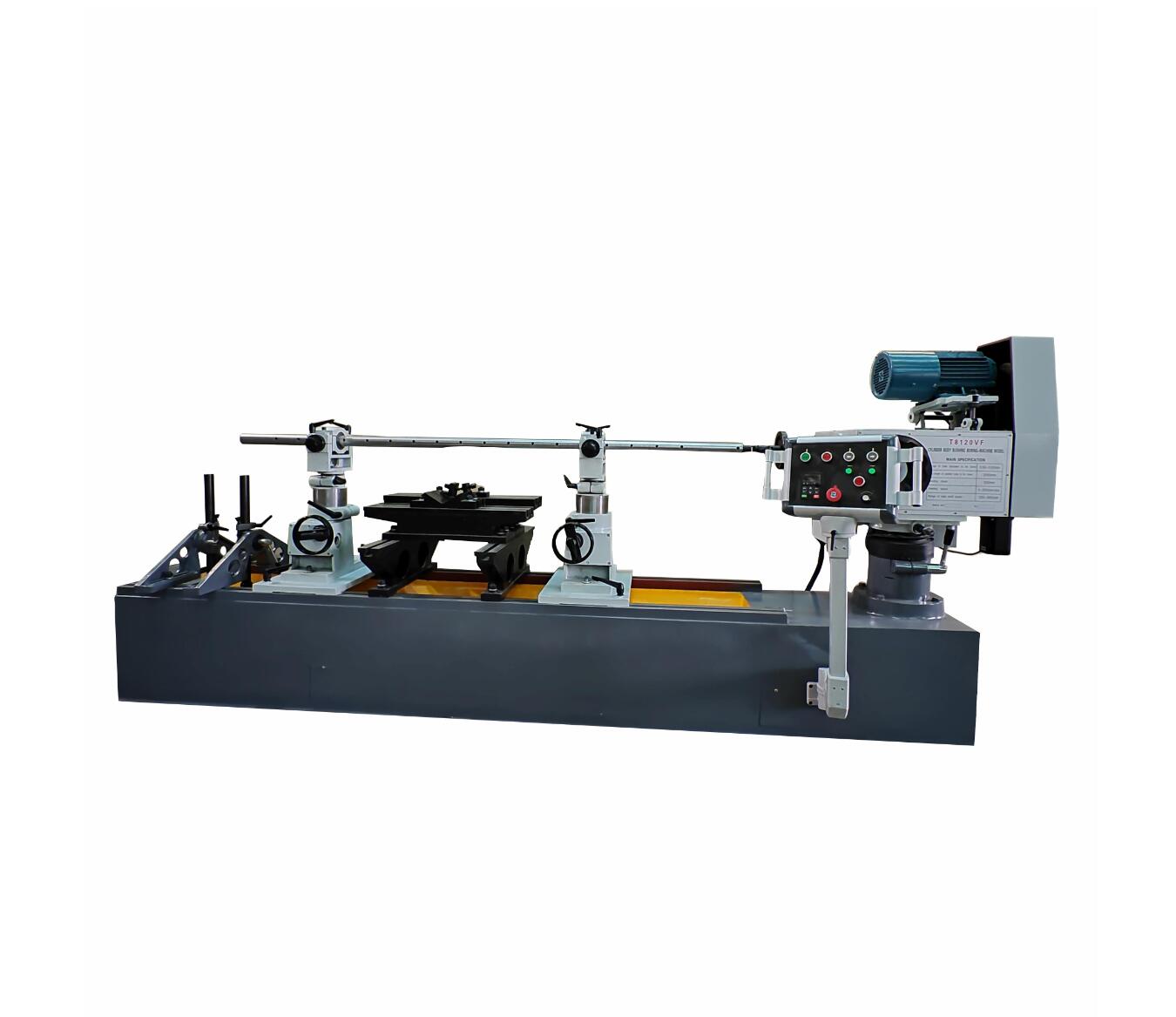

Line Boring Machine - T8115VF/T8120VF
T8115VF cylinder body bushing boring
machines which were developed in our factory.They can be used for boring masrer
bushing and bushing of engine & generator’s cylinder bodier in automobiles
and ships etc.
Model T8120VF cylinder body bushing boring
machines which were developed in our factory.They can be used for boring masrer
bushing and bushing of engine & generator’s cylinder bodier in automobiles
and ships etc.

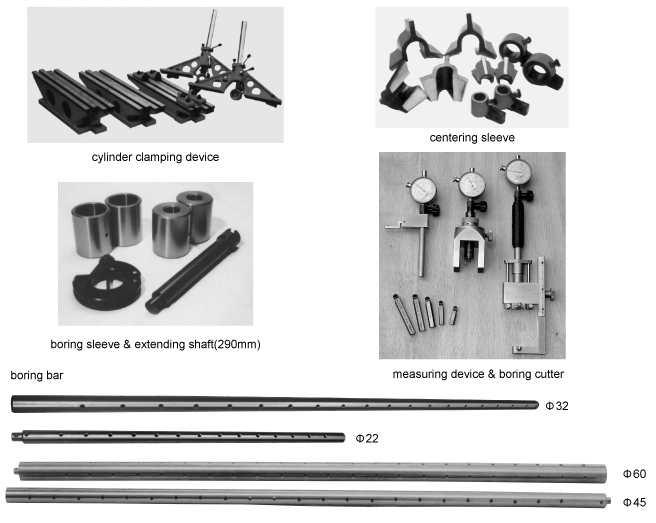

In order to reduce auxiliary manhous and labour intensity and guarantee
machining quality,accessories for centering,sectifying tool, measuring inner
diameter, boring rod bracket, tool holder to increase dianeter, boring tool microadjuster
and for distance tool sectifying device can be provided with the main machine.
| Model | T8115VF | T8120VF |
| Bored hole diameter | Φ36-Φ150mm | Φ36-Φ200mm |
| Max.length of cylinder body | 1600mm | 2000mm |
| Main shaft max elongation | 300mm | 300mm |
| Main shaft rotating speed(stepless) | 30-500rpm | 30-500rpm |
| Boring rod feed ruantity | 0.044,0.167mm/r | 0.044,0.167mm/r |
| Motor power | 0.75/1.1KW | 0.75/1.1KW |
| Overall Dimensions(L×W×H) | 3500×800×1500 | 3900×800×1500 |
| Packing Dimensions(L×W×H) | 3650×1000×1600 | 4040×1020×1600 |
| N.W./G.W | 1900/2200KG | 2200/2500KG |
