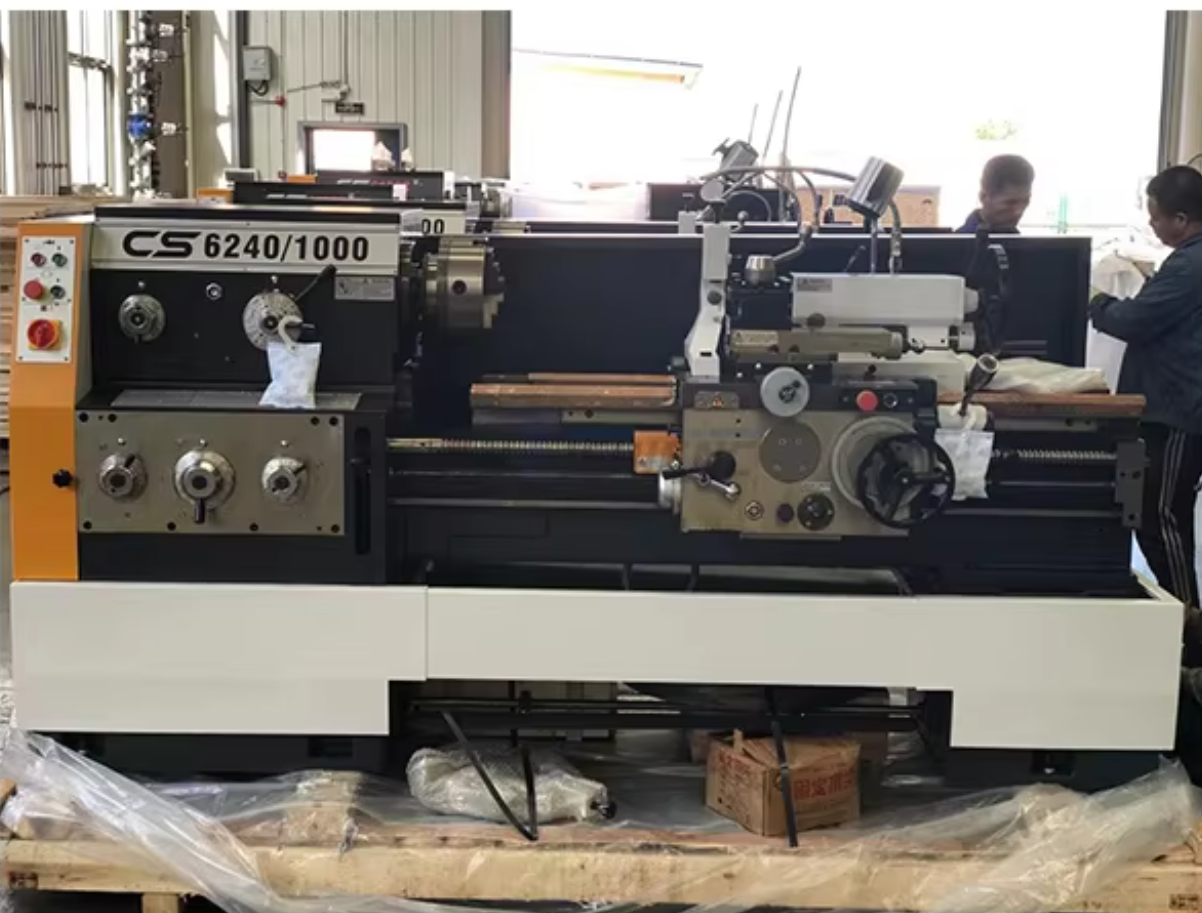

Machine Introduction: —Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz). Item | Unit | CS6240 |
Capacity | Max swing over bed | mm | φ400 | Max swing in gap | mm | φ630 | Effective length in gap | mm | 240 | Max swing over slide | mm | φ220 | Max workpiece length | mm | 1000/1500/2000/3000 | Machine bed width | mm | 390 |
Spindle | Spindle Aperture Diameter | mm | φ52 | Spindle nose |
| ISO 702/Ⅲ No.6 bayonet type | Spindle speed | r/min | 24 step 9-1600 | Spindle motor | kW | 7.5 |
Tailstock | Quill dia./travel | mm | φ75/150 | Taper of center | MT | 5 | Tool post | Number of station/Tool section |
| 4/25X25 |
Feed | Max. travel of upper toolpost | mm | 145 | Max. travel of lower toolpost | m/min | 320 | X-axis feed | mm/r | 93 sorts 0.012-2.73 | Z-axis feed | mm/r | 93 sorts 0.028-6.43 | Metric thread | mm | 48 sorts 0.5-224 | Inch thread | t.p.i | 48 sorts 72-1/8 | Module thread | πmm | 42 sorts 0.5-112 | DP thread | DP | 42 sorts 56-1/4 |
Others | Coolant pump motor | kW | 0.06 | Machine length | mm | 2632/3132/3632/4632 | Machine width | mm | 975 | Machine height | mm | 1230 | Machine weight | kg | 2050/2250/2450/2850 |
|
