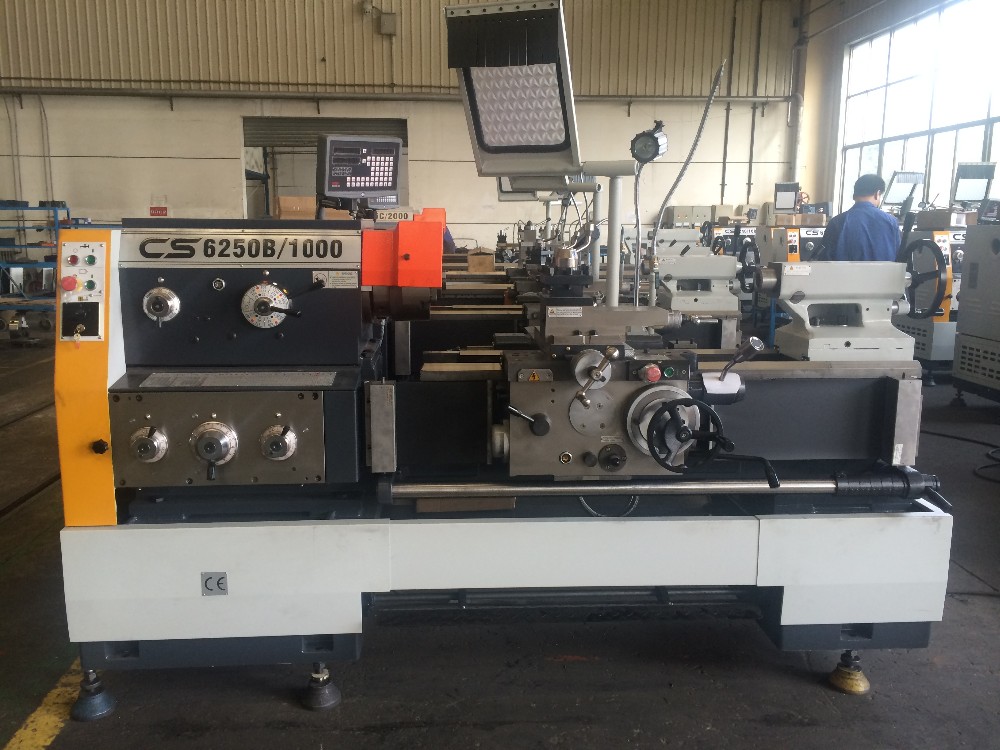

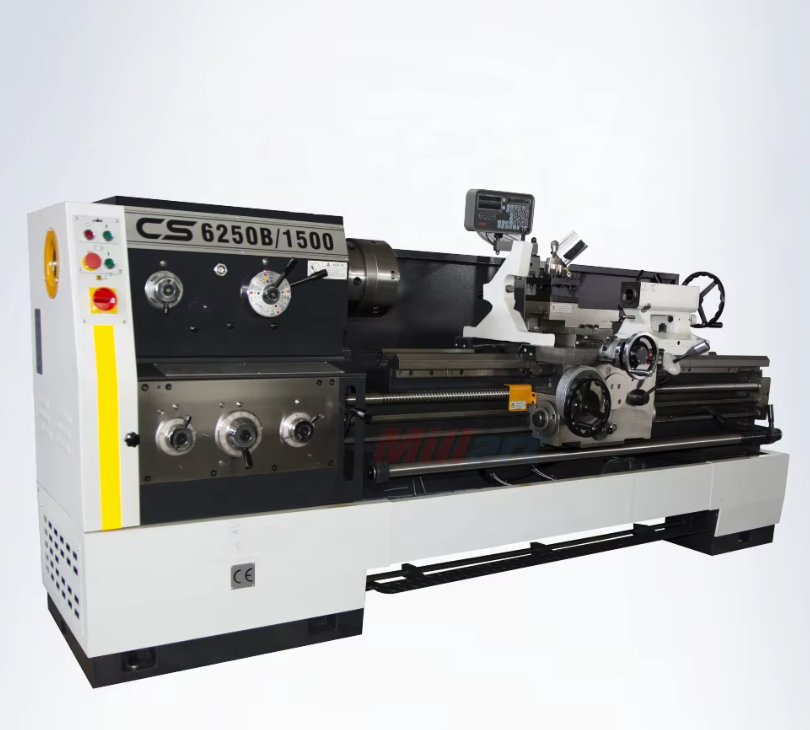

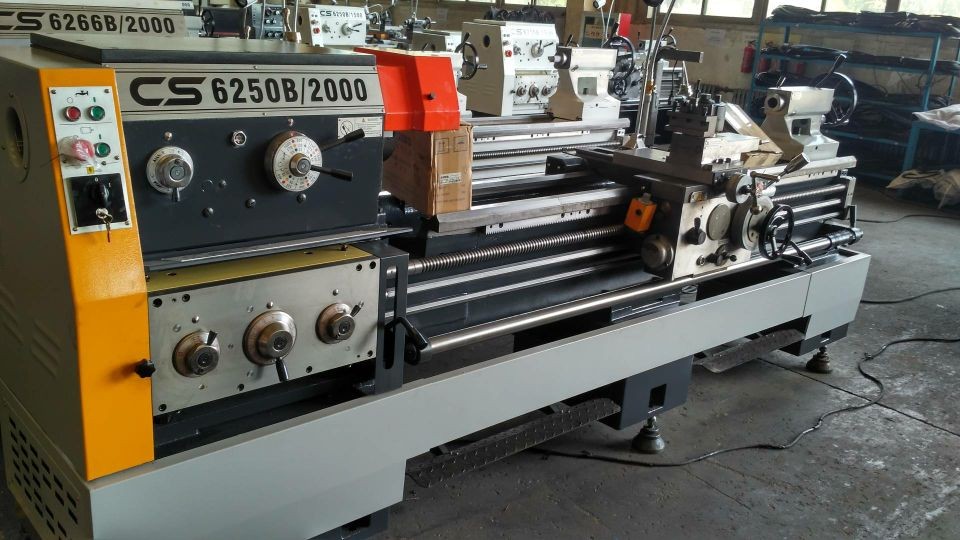

Bed Lathe CS6250B


Model


Unit

CS6250B*1000/1500/2000/3000

CAPACITIES

Max.swing over bed

mm

500

Max.swing dia.in gap

mm

710

Max.swing dia.over slide

mm

300

max.workpiece length

mm

1000/1500/2000/3000

Spindle

Spindle bore diameter

mm

82

Type of spindel nose


ISO 702/II NO.8 com-lock type;

Spindle speed

rpm

24 steps 9-1600

Spindle motor power

kw

7.5

TAILSTOCK

Diameter of quill

mm

75

Max.travel of quill

mm

150

Taper of quill(morse)

MT

MT5

Turret

Tool O.D. size

mm

25*25

Max.X travel

mm

145

Max.Z travel

mm

320

X feed range

mm/r

93 kinds 0.028-6.43

Z feed range

mm/r

93 kinds 0.012-2.73

Metric threads

mm

48 kinds 0.5-224

Inch threads

t.p.i

48 kinds 72-1/4

Module threads

mm

42 kinds 0.5-112

Diametric pitch threads

t.p.i

42 kinds 56-1/4

Packing information

Weight

kg

3280/2500

Packing measurement

cm

280/330/380/480x115x188
