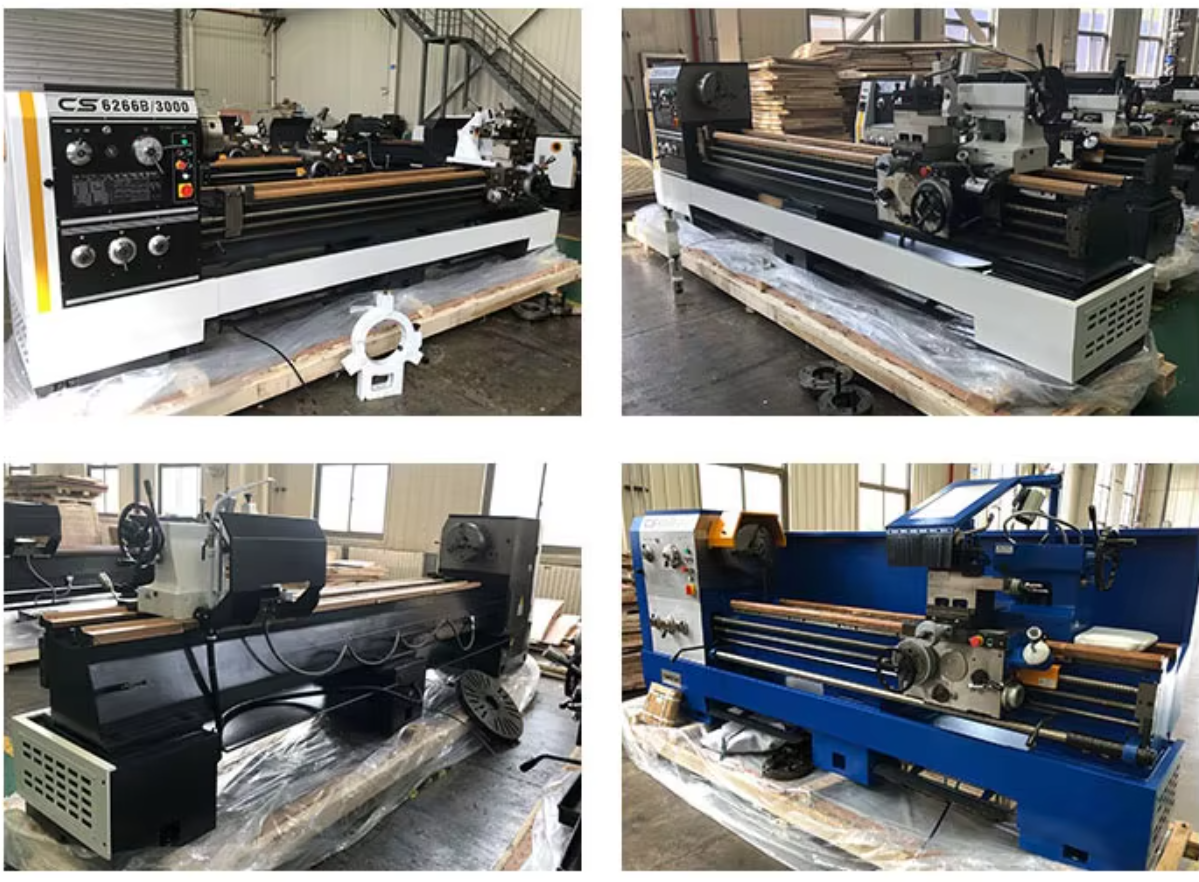

Bed Lathe CS6266B |
SPECIFICATIONS | UNIT | CS6240B | CS6250B | CS6266B | CQ6280B | ||
Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ800 | |
Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ1000 | ||
Max. swing dia. over slides | mm | Φ220 | Φ300 | Φ420 | Φ560 | ||
Max.workpiece length | mm | 750/1000/1500/2000/3000 | 1000/1500 | 2000/3000 | |||
2000/3000 | |||||||
Spindle | Spindle bore diameter | mm | Φ52 | Φ82 | Φ82 | ||
Type of spindle nose | / | CS6240:ISO 702/III NO.6 bayonet lock;others:ISO 702/II NO.8 com-lock type | |||||
Bed width | mm | 390 | 510 | ||||
Spindle speed | rpm | 24 steps 9-1600 | 24 steps | ||||
8-1400 | |||||||
Spindle motor power | KW | 7.5 | |||||
Tailstock | Diameter of quill | mm | Φ75 | Φ90 | |||
Max. travel of quill | mm | 150 | |||||
Taper of quill (Morse) | MT | 5 | |||||
Turret | Tool O.D. size | / | 4 25X25 | ||||
Feed | Max. X travel | mm | 145 | ||||
Max. Z travel | mm | 320 | |||||
X feed range | mm/r | 93 kinds 0.028-6.43 | |||||
Z feed range | mm/r | 93 kinds 0.012-2.73 | |||||
Metric threads | mm | 48 kinds 0.5-224 | |||||
Inch threads | t.p.i | 48 kinds 72-1/4 | |||||
Module threads | πmm | 42 kinds 0.5-112 | |||||
Diametri pitch threads | t.p.i.π | 42 kinds 56-1/4 | |||||
Other | Cooling pump motor power | kw | 0.06 | ||||
Length | mm | 2382/2632/3132/3632/4632 | 2632/3132 | 3365 /4365 | |||
3632/4632 | |||||||
Width | mm | 975 | 1050 | 1340 | |||
Height | mm | 1230 | 1350 | 1430 | |||
Weight | Kg | 1795/2050 | 2050/2100 | 2400/2600 | 3300 /3700 | ||
2250/2450/2850 | 2300/2500 /2900 | 2800/3000 | |||||
