C6246/1000 1500 2000 3000 mm |

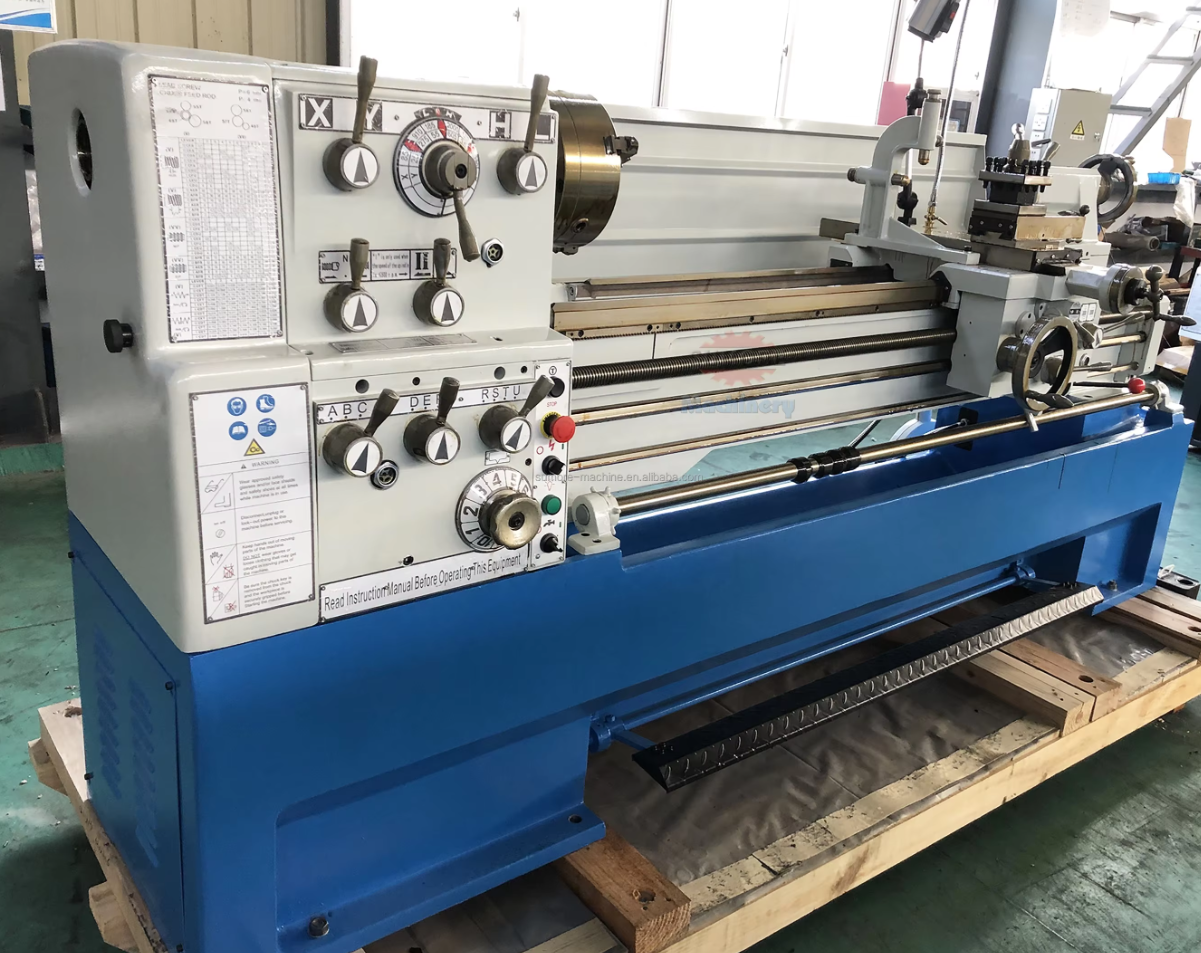

1000/1500/2000/3000mm tour variable speed torno horizontal universal metal lathe machine price C6246
Model | C6241/1000/1500/2000/3000 | C6246/1000/1500/2000/3000 | Swing over Bed | 410 mm | 460 mm | Swing over Cross Slide | 224 mm | 274 mm | Swing over Gap | 640 mm | 690 mm | Distance Between Centers | 1,000 / 1,500 /2000/3000 mm | 1,000 / 1,500 /2000/3000mm | Width of Bed | 300 mm | 300 mm | Spindle Bore | 58 mm | 58 mm | Spindle Taper | MT6 | MT6 | Spindle Nose | D1-6 | D1-6 | Range of Spindle Speeds | 25 - 2,000 rpm | 25 - 2,000 rpm | Range of Longitudinal Feeds | 0.031 - 1.700 mm/rev | 0.031 - 1.700 mm/rev | Range of Traverse Feeds | 0.014 - 0.784 mm/rev | 0.014 - 0.784 mm/rev | Compound Slide Travel | 128 mm | 128 mm | Cross Slide Travel | 290 mm | 290 mm | Tailstock Quill Travel | 120 mm | 120 mm | Tailstock Quill Taper | MT4 | MT4 | Number of Inch Threads | 60 | 60 | Range of Inch Threads | 2 - 112 TPI | 2 - 112 TPI | Number of Metric Threads | 41 | 41 | Range of Metric Threads | 0.1 - 14.0 mm | 0.1 - 14.0 mm | Main Motor Power | 4,000 / 5,500 w (5.4 / 7.5 HP) | 4,000 / 5,000 w (5.4 / 7.5 HP) | Coolant Power | 100 w (1/8 HP) | 100 w (1/8 HP) | Overall Dimensions (LxWxH) | 2,170/ 2,720 x 1,040 x 1,340 mm | 2,170 / 2,720 x 1,040 x 1,370 mm | Packing Size (LxWxH) | 2,250 / 2,800 x 1,120 x 1,730 mm | 2,250 / 2,800 x 1,120 x 1,730 mm | Gross Weight | 1,980 / 2,320 kg | 2,045 / 2,385 kg |
The main features / advantages are as below:
1.Vertical and horizontal feed adopts interlocking mechanism and considerable safety design.
2. The spindle bore is supported with precision roller bearings
3.Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
4.Carriage rapid feed with clutch is available.
5.Larger spindle bore 82mm is available.
6.Easy operating speed change levers.
|
