C6240C C6250C C6260C |

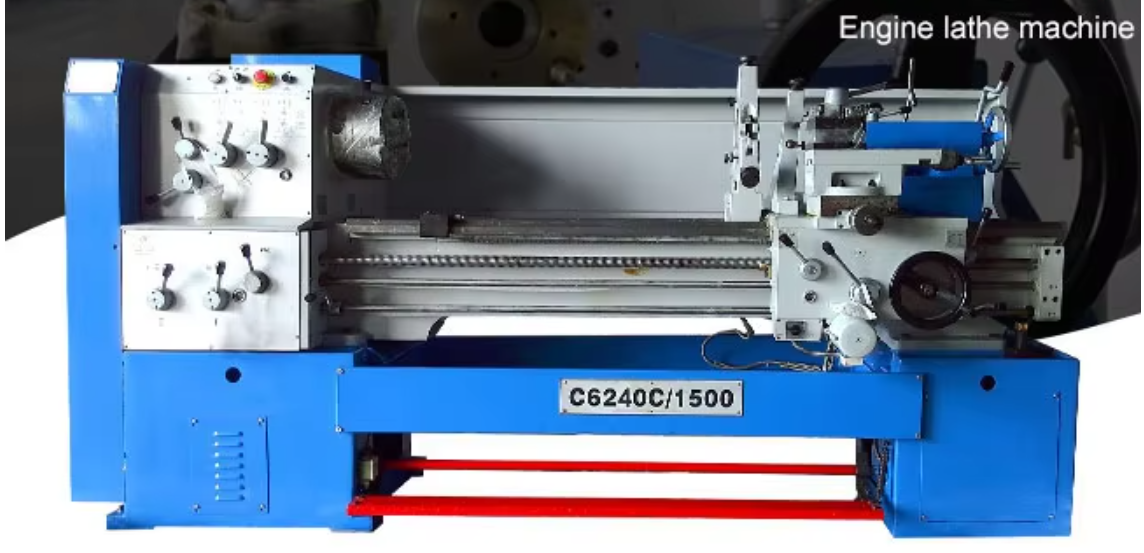

C6240C C6250C C6260C Manual lathe machine
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Model | C6236C | C6240C | C6250C | C6260C | |
CAPACITY | Max.swing over bed | 360mm | 400mm | 500mm | 600mm |
Max.swing over cross slide | 190mm | 230mm | 330mm | 330mm | |
Max.swing over gap | 520mm | 560mm | 660mm | 760mm | |
Effective length of gap | 200mm | ||||
Center Distance | 1000\1500\2000mm | ||||
Bed Width | 360mm | ||||
HEADSTOCK | Spindle hole | 52mm | |||
Spindle nose | ISO-C6 | ||||
Spindle taper | MT6 | ||||
Spindle speed(Number) | (9steps)40-1400rpm | ||||
FEEDS | Longitudinal feeds range | 0.0832-4.66mm/r | |||
Cross feeds range | 0.048-2.69mm/r | ||||
Metric threads range | 19kinds 0.25-14mm | ||||
Inch threads range | 49kinds 2-40inch | ||||
Moudle threads range | 11kinds 0.5-3.5mπ | ||||
CARRIAGE | Max.travel of top slide | 95mm | |||
Max.travel of cross slide | 180mm | 200mm | 250mm | 250mm | |
Max.size of toolshank | 20*20mm2 | ||||
TAILSTOCK | Dia.of tailstock sleeve | 65mm | |||
Taper of tailstock sleeve | MT4 | ||||
Max.travel of tailstock | 140mm | ||||
MOTOR | Main drive motor | 4KW | 5.5KW | 7.5KW | |
Coolant pump motor | 125W | ||||
PACKING | Center Distance(750mm) | 225*115*175cm | |||
Center Distance(1000mm) | 245*115*175cm | ||||
Center Distance(1500mm) | 295*115*175cm | ||||
Center Distance(2000mm) | 345*115*175cm | ||||
N.W/G.W | Center Distance(750mm) | 1350/1750kg | 1400/1800kg | 1500/1900kg | 1600/2000kg |
Center Distance(1000mm) | 1450/1850kg | 1500/1900kg | 1600/2000kg | 1700/2100kg | |
Center Distance(1500mm) | 1600/2000kg | 1650/2050kg | 1750/2150kg | 1900/2300kg | |
Center Distance(2000mm) | 1750/2150kg | 1800/2200kg | 1900/2300kg | 2050/ | |
